Hydraulic fitting FET series
threadedquicksteel

hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
Add to favorites
Compare this product


Characteristics

Applications
hydraulic
Attachment
threaded, quick
Material
steel
Gender
female
Other characteristics
high-pressure, flange, heavy-duty, non-spill
Diameter

Max.: 2 in

Min.: 0.375 in

Operating pressure

Max.: 6,000 psi

Min.: 0 psi

Description

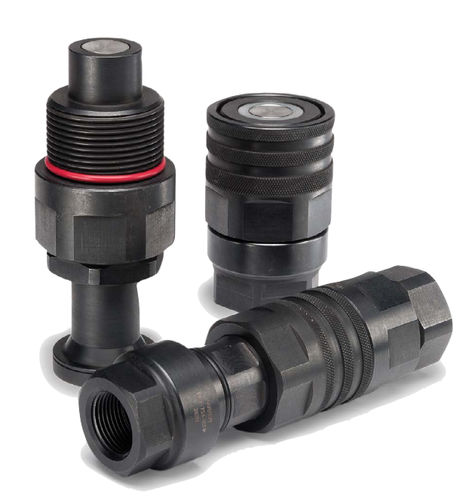

FET Series Nipples (hydraulic) up to 6000 psi connect with FET Series Couplers and are interchangeable with similar threaded hydraulic couplings by other manufacturers. Port options include Code 62 flange head and pad. Parker's FET Series are high pressure (6000 psi) non-spill, heavy duty quick connect couplings. The coupler sleeve and nipple body must be manually threaded together to make the connection. These rugged couplings are built with high strength materials and are impulse resistant. The coupler and nipple have stainless steel non-spill valves and can be connected under residual pressure up to 5000 psi and disconnected under residual pressure up to 2500 psi. When the external red O-ring is fully covered by the sleeve, it visually indicates that a complete connection has been made. Technical Characteristics: • Material: Steel with FNC coating for extended durability, stainless steel valve (2" has steel valve) • Port Ends: Female NPTF, Female ORB, Code 62 flange head and pad • Seal: Nitrile, polyurethane Markets: • Oil and Gas • Construction • Mining Features/Benefits: • - Interchangeable with similar thread to connect couplings by other manufacturers • - Sizes 3/8" -1/1/2" have stainless steel valves, 2" valve is steel • - When the external red color O-ring is fully covered by the sleeve, it provides Visual indication that a complété connection has been made. • - Connect and disconnect under residual pressure • - High strength materials are impulse résistant for demanding applications Applications: • - On-shore drilling and oil field equipment • - High impulse mobile circuits • - Excavator attachments • - Tunnel boring
