Pneumatic fitting 1400 series

pneumatic fitting
pneumatic fitting
Add to favorites
Compare this product


brass, steel
Other characteristics
compact, robust, increased safety

5.5 mm
(0.217 in)

Operating pressure

12 bar
(174.05 psi)

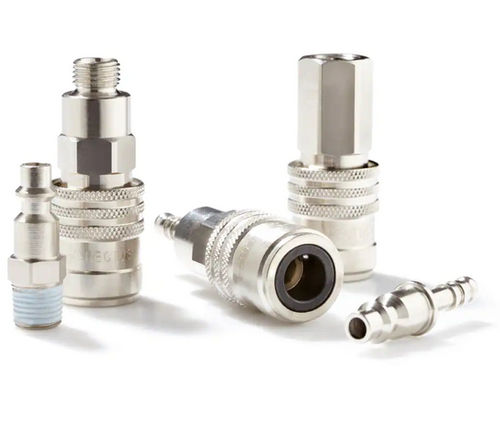

Parker's Premium Plus Safety Quick Coupling Sériés 1400 is a safety coupling 1/4" with a self- venting system according to ISO 6150 B. The self-venting takes place during disconnection - no risk of pressurized hoses being tossed around. When the sleeve is pulled back, the plug is released yet remains locked in. The coupling valve closes and the air is vented from the air line at the same time. Only then, by operating the sleeve again, can uncoupling take place safely. The system fulfils the requirements of ISO 4414 - increased safety standards in the work place. The Ultra HighFlow valve guarantees optimum flow and low pressure drop. The right plug for self-venting sériés 1400 can be found under sériés 23. Markets: - - Machinery Construction - - Automotive Features/Benefits: - - Safety Coupling with self-venting mechanism according to ISO 6150 B - - No whiplash effect due to the self-venting which takes place during disconnection - - Ultra HighFlow valve for optimum flow and low pressure drop - Energy Saver - - Compact & robust design due to the hardened valve body - - Low connection forces Applications: - - Pneumatic Tools - - Pneumatic Airline Systems - - Assembly Lines


No catalogs are available for this product.

See all of Parker Quick Coupling Division‘s catalogs

Other Parker Quick Coupling Division products

Fittings and Quick Couplings
