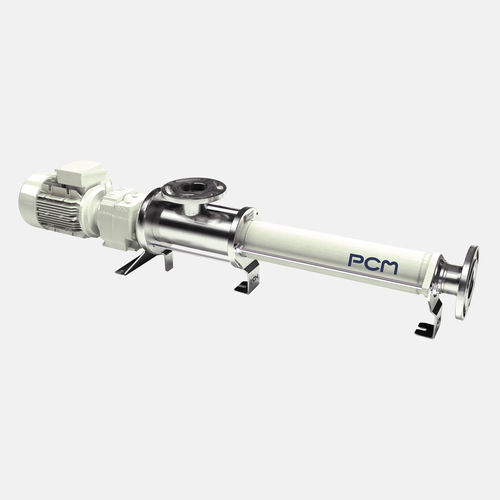

Progressive cavity pump PCM EcoMoineau™ Cfor industrial waterfor hot waterfor chemicals
Add to favorites
Compare this product
Characteristics
- Technology
- progressive cavity
- Fluid
- for industrial water, for hot water, for chemicals, for food products, oil
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial, for the chemical industry, for wastewater treatment, for the food industry, for the pharmaceutical industry, mining and quarrying, for the paper industry, for the cosmetics industry, sanitary, for the printing industry
- Applications
- transfer, discharge, volumetric dispensing, process, high-pressure, for meat, metering, chemical process, conveying, injection, circulation, sewage, treatment, feed, filling, trial, for pumping stations, suction, transport
- Material
- stainless steel
- Fluid specification
- for corrosive fluids, for paper stock
- Protection level
- chemical-resistant, explosion-proof, standard, corrosion-resistant, rugged, ATEX, explosion-proof
- Other characteristics
- with flange, compact, mechanical, small, high-performance, with mechanical seals, modular, close-coupled, small-size, for integration
- Flow
Min.: 0.02 m³/h
(0.70629 ft³/h)Max.: 240 m³/h
(8,475.52001 ft³/h)- Pressure
24 bar
(348.091 psi)- Power
Min.: 0.37 kW
(0.5 hp)Max.: 45 kW
(61.18 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 95 °C
(203 °F)
Description
The right progressive cavity pump for every application!
PCM EcoMoineau™ C Progressive Cavity Pump Merges Technologies for Optimal Efficiency
The PCM EcoMoineau™ C pump combines the advantages of progressive cavity pump technology with the characteristics of progressive cavity pumps, providing optimal efficiency and proven reliability in industrial applications.
A high-performance pumping solution for the industrial and food markets
The PCM EcoMoineau™ C pump is the ideal choice for industries looking for a high-performance, robust, and easy-to-use pumping solution.
Built-in stainless-steel, this pump is dedicated to the industry and food markets. Its wide range of available options makes it a perfect fit for many industries.
A progressive cavity pump resistant to corrosive applications
With its stainless-steel construction and E-CTFE coated shaft line, the PCM EcoMoineau™ C pump is highly resistant to corrosive applications.
Versatile construction
Built-in mounting
Cost-effective solution including a bellows mechanical seal.
Shorter and lighter design.
One-piece or bearing mounting
Versatile configuration (multiple seals available).
Spacer design for easy access to the sealing system.
Rubber deflector: protects the drive or bearing and reduces maintenance.
