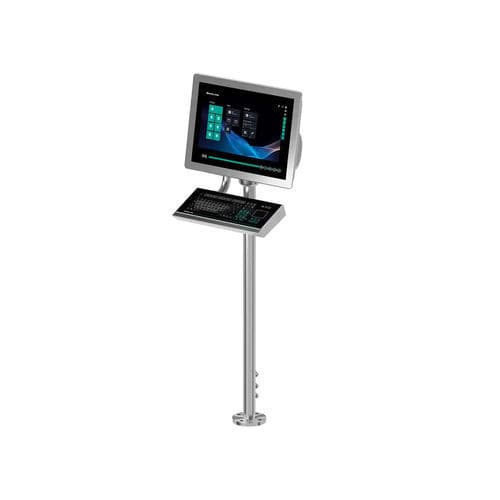

LCD monitor RM-GXP1100-22F-*-T4*

liquid crystalindustrial21.5"

Product overview
VisuNet GXP Remote Monitor Zone 1/21 (2024 Generation, Intel® Atom Elkhart Lake Processor).

Key Benefits at a Glance

• 21.5" (54.61 cm) display
• 16:9 aspect ratio widescreen formatting to match engineering stations
• Thin Client solution (with VisuNet RM Shell firmware)
• Lightweight design
• Full HD Resolution
• Completely modular system for easy field maintainability
• Flush or bezel mounting options
• IP66 rating for each individual component and entire system with housing
• Certified for ATEX and IECEx Zone 1/21
• Integrated RFID Reader (optional)

Short product description
Operator Workstation (RM) designed as a VisuNet GXP Remote Monitor for hazardous areas (Zone 1/21). Modular, IP66-rated system offering thin client operation, Full HD display and options for integrated RFID and touch interaction.

Technical data (selected)
General specifications:
Type: Remote Monitor

Hardware:
Processor: Intel® Atom Elkhart Lake x6211E
RAM: 4 GB
Mass storage: 64 GByte eMMC

Supply:
AC: 115/230 V AC, 0.4 ... 0.7 A, 50/60 Hz
DC: 18 ... 36 V DC, 1.5 ... 3 A

Display / Indicators / Operating means:
Display type: Liquid Crystal Display (LCD) with LED backlight
Screen size: 54.61 cm (21.5 inch)
Resolution: 1920 x 1080 pixels (Full HD); Aspect ratio 16:9
Color depth: 24 bit (16.7 M) color
Contrast ratio: 5000:1 (typically)
Brightness: 300 cd/m² (nit) (typically)
Viewing angle: 175° in all directions
Back lamp life: 50,000 hrs typical half life at 25 °C (77 °F)

Input devices:
Touch screen (optional): projective capacitive; 10 finger multi-touch, glove friendly

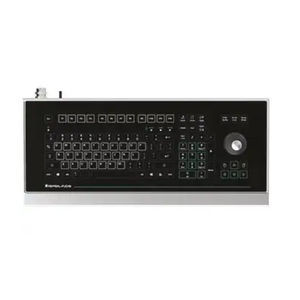

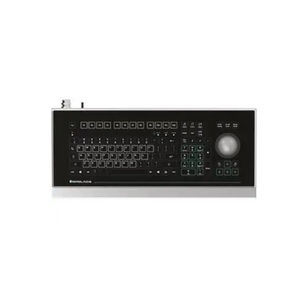

Keyboard: Foil keyboard with different pointing device options available (see EXTA4 datasheet)

Interface (standard and notable options):
Standard: 1 x Ethernet 100/1000BASE-TX (Ex e) or 1 x fiber optic 1000BASE-SX (Multimode) or 1 x fiber optic 1000BASE-LX (Singlemode), 1 x USB 2.0 (Ex e; service port), 2 x USB 1.1 (Ex i; intended for Pepperl+Fuchs keyboard and mouse), 1 x DC or AC power in (via power supply unit)
Optional: Interface 3: barcode reader interface for wired 1-D scanners (Ex i); Interface 4: barcode reader interface for wired 2-D scanners (Ex i); Interface 5: RS-232 interface with Power Supply (Ex i)
Also: 1 x RS-232 (Ex e), 1 x RS-485 (Ex e), 1 x Ethernet 100/1000Base-TX (Ex e), Bluetooth v4.0 (up to 30 m open terrain, +8 dBm, 2.402 ... 2.48 GHz)

Directive conformity / Standards (selection):
Electromagnetic compatibility: Directive 2014/30/EU — EN 61326-1:2013 (industrial locations) (Non-Bluetooth / non-RFID products only)
Radio and telecommunication terminal equipment: Directive 2014/53/EU — EN 300 328 V2.2.2:2019; EN 301 489-1 V2.2.0:2017; EN 301 489-17 V3.2.0:2017 (Bluetooth products only). RFID products and other radio-specific standards listed where applicable.
RoHS: Directive 2011/65/EU (RoHS) — EN IEC 63000:2018

Software:
Operating system: VisuNet RM Shell 6 (based on Windows® 10 IoT Enterprise LTSC 2021 x64). Optional pre-installed (without licence): IGEL OS 12 (Linux) or IGEL OS 11 (Linux).

Ambient conditions:
Operating temperature: -20 ... 50 °C (-4 ... 122 °F) — display might react sluggishly below 0 °C
Storage temperature: -20 ... 60 °C (-4 ... 140 °F)
Relative humidity: 93% at 40 °C, non-condensating (according to EN60068-2-78)
Operating altitude max.: 2000 m
Shock resistance: 18 shocks 15 g, 11 ms all axis (IEC 60068-2-27)
Vibration resistance: 10 ... 150 Hz, +/- 0.075 mm, 1 g, 10 cycles per axis (EN60068-2-6)

Mechanical specifications:
Degree of protection: IP66 (individual components and entire system with housing)
Material (internal): Panel: anodized aluminum (TCU, PCU, PSU), powder coated aluminum (DPU)
Material (external): Bezel: stainless steel AISI 304 (1.4301); System housing H4: stainless steel AISI 304 (1.4301), bead blasted, typical surface roughness Ra = 1.6 µm
Installation: Flush-mount installation (requires customized mounting kit); Panel-mount into system housing with bezel; Panel-mount into cabinet with Bezel and standard mounting kit
Mass: Panel (DPU with bezel, TCU, PSU DC): approx. 23 kg; Panel (DPU with bezel, TCU, PSU AC): approx. 24 kg; System housing (AG-XX00): approx. 11 kg
Dimensions: Panel (DPU with bezel, TCU, PSU DC): 625 mm x 459 mm x 120 mm; Panel (DPU with bezel, TCU, PSU AC): 625 mm x 459 mm x 137 mm; Panel with system housing: 625 mm x 459 mm x 173 mm; Panel cut-out dimensions: 583 mm x 417 mm (installation surface)
Note: * see nameplate: 2021 alternative, processor cannot be selected

Data for application in connection with hazardous areas:
EU-type examination certificate: BVS 17 ATEX E 036 X
Marking: II 2G Ex eb q ib [ib] IIC T4 Gb / [exsign] II 2D Ex tb [ib] IIIC T85°C Db
Directive conformity for hazardous areas: Directive 2014/34/EU — EN IEC 60079-0:2018; EN 60079-5:2015; EN IEC 60079-7:2015+A1:2018; EN 60079-11:2012; EN 60079-31:2014

International approvals (selection)
IECEx certificate: IECEx BVS 17.0029X
IECEx marking: Ex eb q ib [ib] IIC T4 Gb / Ex tb [ib] IIIC T85°C Db
Standards (IECEx): IEC 60079-0:2017 Ed. 7.0; IEC 60079-5:2015 Ed. 4; IEC 60079-7:2017 Ed. 5.1; IEC 60079-11:2011 Ed. 6.0; IEC 60079-31:2013 Ed. 2.0

Characteristics / technical specifications

• Model: RM-GXP1100-22F-*-T4*
• Type: Remote Monitor (Operator Workstation RM)
• Brand: Pepperl+Fuchs
• Processor: Intel® Atom Elkhart Lake x6211E
• RAM: 4 GB
• Mass storage: 64 GByte eMMC
• Display: 21.5" (54.61 cm), 1920 x 1080 Full HD, 16:9, 24 bit color
• Brightness / Contrast: 300 cd/m² (typical) / 5000:1 (typical)
• Touch: Optional projective capacitive multi-touch (glove friendly)
• Power: 115/230 V AC or 18 ... 36 V DC
• Degree of protection: IP66 (components and system with housing)
• Hazardous area certificates: ATEX (BVS 17 ATEX E 036 X) and IECEx (IECEx BVS 17.0029X)
• Operating temp: -20 ... 50 °C; Storage temp: -20 ... 60 °C
• Mass (panel): approx. 23–24 kg depending on PSU; Panel cut-out: 583 x 417 mm
• Software: VisuNet RM Shell 6 (Windows® 10 IoT Enterprise LTSC 2021 x64); optional IGEL OS 12 / 11
