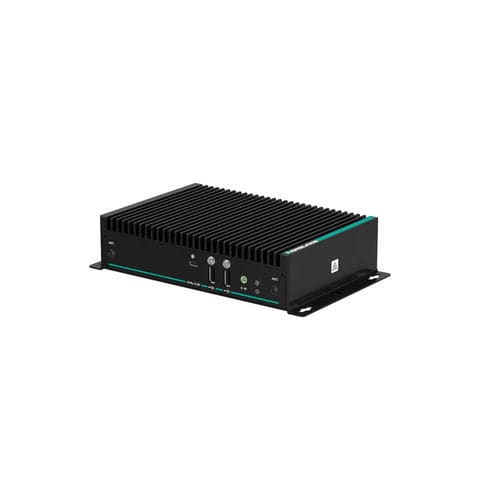

Box thin client BTC22-*

desktopVESA mountingDIN rail

Overview
Industrial box thin client designed for continuous 24/7 operation and optimized for virtualization applications from control rooms to industrial and hazardous areas. Passive cooling with no moving parts; multiple mounting options for integration into industrial installations.

Key Benefits at a Glance

• Industrial-grade box thin client for 24/7 operation
• Long-term product availability and support (>5 years)
• Supports up to two Ultra HD (4K) displays at 60 Hz
• Compact footprint and multiple mounting options (desktop, VESA, DIN-rail via adapter)

Hardware
Processor: Intel Atom x6413E
RAM: 8 GB DDR4
Mass storage: 64 GByte eMMC TLC

Supply
Power input: 12 ... 28 V DC
Input current: 1 A - 2 A
Input via 2.5 mm power socket

Interface

• Front side: 1x USB 3.2 Gen 1 w/ DP alt mode, Type C; 2x USB 2.0 Type A; power button; audio line out
• Back side: 3x 1000Base-T Ethernet; 2x DisplayPort 1.4; 1x DC (DC jack 5.5 x 2.5 mm with lock mechanism); 2x USB 3.2 Gen 1 Type A; 1x RS-232/RS-485 with RJ45 connector

Directive conformity
Electromagnetic compatibility:
Directive 2014/30/EU — EN 61326-1:2013; EN 55032:2015, AC:2016; EN 55035:2017
RoHS:
Directive 2011/65/EU (RoHS) — EN 50581:2012-09

Software
Operating system: VisuNet RM Shell 6 (based on Windows® 11 IoT Enterprise LTSC 2024)
Optional: IGEL OS 12 (Linux-based, pre-installed without licence); ThinManager Ready

Ambient conditions
Operating temperature: 0 ... 55 °C (32 ... 131 °F)
Storage temperature: -20 ... 60 °C (-4 ... 140 °F)
Relative humidity: ≤ 95 % at 60 °C (non-condensing acc. to EN 60068-2-78)
Shock resistance: 40 g (11 ms) when operating; 80 g (11 ms) when not operating
Vibration resistance: 3 g RMS, 5 ... 500 Hz

Mechanical specifications
Degree of protection: IP40
Mass: 1.32 kg
Dimensions: 216 mm x 130 mm x 47 mm
Mounting: Desktop or wall mounting, VESA mount (100 x 100 mm and 75 x 75 mm) and DIN-rail mounting via optional adapter
Note: passive cooling, no moving parts. Power supply not included.

International approvals
UL approval: "UL Listed" for Canada and USA, E223772 (Ordinary Location)
Approved for: CE (EN61326-1 / EN55032 / EN55035 Class A); FCC Class B and ICES-003 Issue 7

Characteristics / technical specifications

• Model / Series: BTC22-*
• Processor: Intel Atom x6413E
• Memory: 8 GB DDR4
• Storage: 64 GByte eMMC TLC
• Power input: 12–28 V DC, 1–2 A (2.5 mm jack)
• Network: 3x 1000Base-T Ethernet
• Video outputs: 2x DisplayPort 1.4 (supports up to two Ultra HD 4K @60 Hz)
• USB: Front: USB-C (USB 3.2 Gen1 w/ DP alt mode), 2x USB 2.0; Back: 2x USB 3.2 Gen1 Type A
• Serial: 1x RS-232/RS-485 (RJ45)
• OS: VisuNet RM Shell 6 (Windows® 11 IoT Enterprise LTSC 2024); optional IGEL OS 12; ThinManager Ready
• Operating temp: 0–55 °C
• Protection class: IP40
• Weight: 1.32 kg
• Dimensions: 216 x 130 x 47 mm
• Cooling: Passive (no moving parts)
• Certifications: CE, UL Listed, FCC Class B, ICES-003
