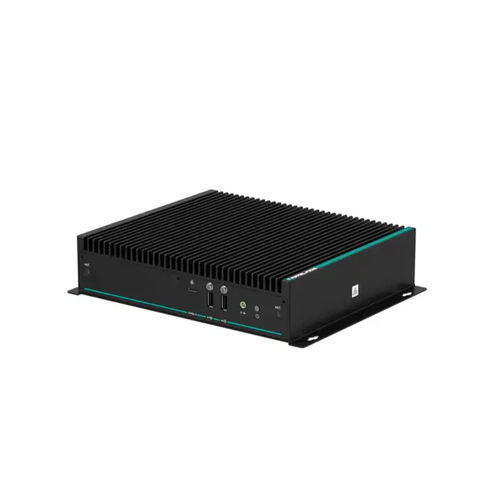

Box thin client BTC24-*

VESA mountingwall-mountedDIN rail

Product overview
Industrial box thin client designed for continuous 24/7 operation. Compact footprint and long-term product availability (>5 years). Supports up to 4 modern Ultra HD (4K) monitors at 60 Hz. Passive cooling with no moving parts.

Key benefits at a glance

• Industrial-grade box thin client for continuous 24/7 operation
• Long-term support and product availability for more than 5 years
• Supports up to 4 Ultra HD (4K) displays @60 Hz via DisplayPort 1.4
• Compact footprint and multiple mounting options (desktop, VESA, DIN-rail adapter)

Technical data — Hardware
Processor: AMD Ryzen R2314
RAM: 8 GB DDR4 (2x 4 GB dual-channel)
Mass storage: 64 GB M.2 SSD

Technical data — Supply
Power supply: Input voltage: 12 ... 28 V DC
Input current: 4.6 A … 1.9 A
Input via 2.5 mm power socket (DC jack 5.5 x 2.5 mm with lock mechanism)
Power supply not included

Technical data — Interface
Front side: 1x USB 3.2 Gen 1 Type C; 2x USB 2.0 Type A; Power button; Audio line out
Back side: 3x 1000Base-T Ethernet; 4x DisplayPort 1.4; 1x DC jack (5.5 x 2.5 mm with lock); 3x USB 3.2 Gen 1 Type A; 1x RS-232/RS-485 (RJ45)

Directive conformity
Electromagnetic compatibility: EN 61326-1:2021; EN 55032:2015+A11:2020+A1:2020; EN 55011:2016+A1:2017+A11:2020+A2:2021 (Group 1, Class B)
RoHS: Directive 2011/65/EU (RoHS) — EN IEC 63000:2018-12

Software
Operating system: VisuNet RM Shell 6 (based on Windows® 11 IoT Enterprise LTSC 2024)
Optional: IGEL OS 12 (Linux-based, pre-installed without licence); ThinManager Ready

Ambient conditions
Operating temperature: 0 ... 55 °C (32 ... 131 °F)
Storage temperature: -20 ... 60 °C (-4 ... 140 °F)
Relative humidity: ≤ 90 % at 60 °C (non-condensing acc. to EN 60068-2-78)
Shock resistance: 40 g (11 ms) when operating; 80 g (11 ms) when not operating
Vibration resistance: 3 g rms, 5 ... 500 Hz

Mechanical specifications
Degree of protection: IP4x
Mass: 2.47 kg
Dimensions: 259.1 mm x 56.05 mm x 199.8 mm
Mounting: Desktop or wall mounting, VESA mount (100 x 100 mm and 75 x 75 mm) and DIN-rail mounting via optional adapter
Note: passive cooling, no moving parts; power supply not included.

International approvals
UL approval: UL Listed for Canada and USA, E223772 (Ordinary Location)
Approved for: CE (EN 61326-1 / EN 55032 / EN 55035 Class A); FCC Class A; ICES-003 Issue 7

Technical characteristics / specifications

• Model series: BTC24-*
• Designed for continuous 24/7 industrial operation
• Support for up to 4x Ultra HD (4K) @60 Hz
• Processor: AMD Ryzen R2314
• Memory: 8 GB DDR4 (2x4 GB, dual-channel)
• Storage: 64 GB M.2 SSD
• Power input: 12–28 V DC, DC jack 5.5 x 2.5 mm with locking mechanism
• Front I/O: USB-C, 2x USB-A, Audio Out, Power Button
• Rear I/O: 3x Gigabit Ethernet, 4x DisplayPort 1.4, 3x USB 3.2 Gen1, RS-232/RS-485 (RJ45)
• Operating temperature range: 0–55 °C
• Storage temperature: -20–60 °C
• Relative humidity: ≤ 90 % (non-condensing)
• Shock & vibration resistance as specified above
• Dimensions & weight: 259.1 x 56.05 x 199.8 mm; 2.47 kg
• Protection class: IP4x
• Cooling: Passive (no moving parts)
• Long-term product availability: >5 years
