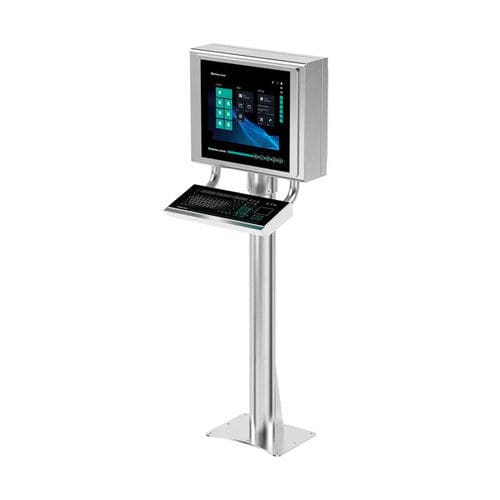

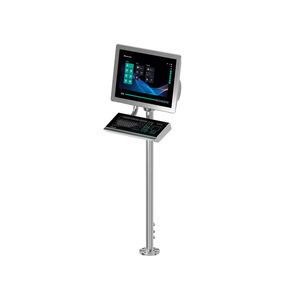

Projected capacitive touchscreen monitor RM-GXP1100-19S-*-T4*

LED backlightLCDmultitouch screen

Product overview
VisuNet GXP Remote Monitor Zone 1/21 (2024 generation) designed as a thin‑client operator workstation. Modular construction for easy maintenance; certified for hazardous areas with IP66 protection.

Key benefits at a glance

• 19 in (48.26 cm) display, 1280 x 1024 (SXGA)
• Thin‑client solution with VisuNet RM Shell firmware
• Modular, lightweight design for field serviceability
• Flush or bezel mounting options
• IP66 protection for individual components and complete system housing
• Certified for ATEX and IECEx Zone 1/21

Technical data
General specifications:
Type: Remote Monitor

Hardware:
Processor: Intel® Atom Elkhart Lake x6211E
RAM: 4 GB
Mass storage: 64 GByte eMMC

Supply:
AC: 115/230 V AC, 0.4 ... 0.7 A, 50/60 Hz
DC: 18 ... 36 V DC, 1.5 ... 3 A

Display:
Type: LCD with LED backlight
Screen size: 48.26 cm (19 inch)
Resolution: 1280 x 1024 (SXGA), aspect ratio 5:4
Color depth: 24 bit (16.7 M)
Contrast ratio: 1000:1
Brightness: 450 cd/m2 (typical)
Viewing angle: 170° horizontal, 160° vertical
Backlight life: 50,000 hrs typical half life at 25 °C

Input devices:
Touch screen: optional projective capacitive; 10‑finger multi‑touch, glove friendly
Keyboard: Foil keyboard; multiple pointing device options available

Interface:
Standard: 1 x Ethernet 100/1000BASE‑TX (Ex e) or 1 x fiber 1000BASE‑SX (multimode) or 1 x fiber 1000BASE‑LX (singlemode), 1 x USB 2.0 (Ex e; service), 2 x USB 1.1 (Ex i; for keyboard/mouse), 1 x DC or AC power in (via PSU)
Optional: barcode reader interfaces for wired 1‑D/2‑D scanners (Ex i); RS‑232 with power (Ex i); RS‑232 (Ex e); RS‑485 (Ex e); additional Ethernet 100/1000Base‑TX (Ex e); Bluetooth v4.0 (up to 30 m open terrain, +8 dBm, 2.402–2.48 GHz)

Directive conformity:
EMC: Directive 2014/30/EU — EN 61326‑1:2013 (industrial locations) (non‑Bluetooth products)
Radio: Directive 2014/53/EU — EN 301 328 V2.1.1, EN 301 489‑1 V2.1.1, EN 301 489‑17 V3.1.1 (Bluetooth products)
RoHS: Directive 2011/65/EU — EN 50581:2012

Software:
OS: VisuNet RM Shell 6 (based on Windows® 10 IoT Enterprise LTSC 2021 x64)
Optional: IGEL OS 12 or IGEL OS 11 (Linux‑based, preinstalled without licence)

Ambient conditions:
Operating temperature: -20 ... 50 °C (-4 ... 122 °F)
Storage temperature: -20 ... 60 °C (-4 ... 140 °F)
Relative humidity: 93% at 40 °C, non‑condensing (EN60068‑2‑78)
Operating altitude max.: 2000 m
Shock resistance: 18 shocks, 15 g, 11 ms, all axes (IEC 60068‑2‑27)
Vibration resistance: 10 ... 150 Hz, ±0.075 mm, 1 g, 10 cycles per axis (EN60068‑2‑6)

Mechanical specifications:
Degree of protection: IP66 (components and complete system with housing)
Material: Internal: panel: anodized aluminum (TCU, PSU), powder‑coated aluminum (DPU); External: bezel and housing: stainless steel AISI 304 (1.4301), bead blasted, Ra ≈ 1.6 µm
Installation: Flush‑mount (requires custom mounting kit); panel‑mount into system housing with bezel; panel‑mount into cabinet with standard mounting kit
Mass: panel with DC: 22 kg; panel with AC: 23 kg; system housing AG1: 19 kg
Dimensions: panel DC: 524 x 453 x 120 mm; panel AC: 524 x 453 x 137 mm; panel in AG1: 582 x 490 x 224 mm
Note: * see nameplate: 2021 alternative, processor cannot be selected

Data for application in connection with hazardous areas:
EU‑type examination certificate: BVS 17 ATEX E 036 X
Marking: II 2G Ex eb q ib [ib] IIC T4 Gb; II 2D Ex tb [ib] IIIC T85°C Db
Directive conformity: Directive 2014/34/EU — EN 60079‑0:2012+A11:2013; EN 60079‑5:2015; EN 60079‑7:2015; EN 60079‑11:2012; EN 60079‑31:2014

International approvals:
IECEx certificate: IECEx BVS 17.0029X
IECEx marking: Ex eb q ib [ib] IIC T4 Gb; Ex tb [ib] IIIC T85°C Db
Standards: IEC 60079‑0:2011; IEC 60079‑5:2015; IEC 60079‑7:2015; IEC 60079‑11:2011; IEC 60079‑31:2013

Technical characteristics / specifications

• Model: RM‑GXP1100‑19S‑*-T4*
• Product family: VisuNet GXP Remote Monitor (RM)
• Processor: Intel® Atom Elkhart Lake x6211E
• RAM / Storage: 4 GB RAM / 64 GByte eMMC
• Display: 19" (48.26 cm), 1280 x 1024, 450 cd/m²
• Degree of protection: IP66 (components and complete system)
• Explosion protection: ATEX and IECEx for Zone 1/21
• Operating temperature: -20 ... 50 °C
• Weight: 19–23 kg depending on configuration
• Supply: AC 115/230 V or DC 18...36 V
