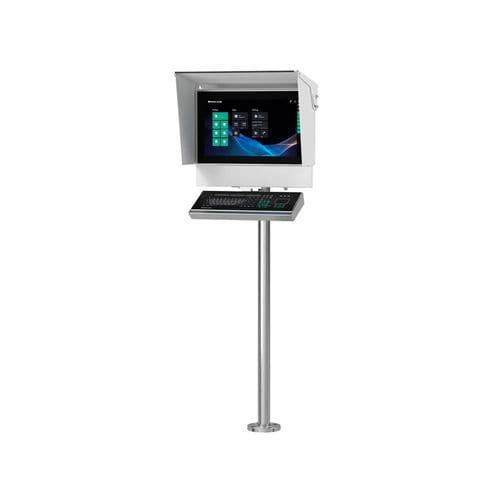

Multitouch screen monitor RM-320S

LED backlightcapacitive touch screenfor displays

Product overview
The RM-320S-*B-* Remote Monitor is a system with enclosure from the VisuNet FLX family. It provides a thin-client solution (VisuNet RM Shell firmware) in a powder-coated marine-grade aluminum enclosure, designed for outdoor and industrial use with optional sunshields and optional preinstalled RFID20-* reader. Rated for operation from -20 °C to 50 °C and protection class IP66.

Key benefits at a glance

• Operates in extended temperature range -20 °C ... 50 °C with aluminum housing
• Thin Client solution with VisuNet RM Shell firmware
• Suitable for outdoor use with multiple sunshield options
• Fully modular design for easy migration of individual components
• High application flexibility via identical configurable basic components
• Optional preinstalled RFID20-* reader

Technical data (selected)
Type: Remote Monitor
Processor: Intel® Celeron™ 3965U
RAM: 1x4 GB or 1x8 GB DDR4-2133 (wide temperature grade)
Storage: 64 GB M.2 SATA 3 III; interface 1x M.2 2242/2280 M Key (PCIe + SATA 3)
Power: AC max. 60 W; DC max. 51 W
Display: 21.5 inch (54.61 cm), Full HD 1920 x 1080, 24 bit color; brightness 300 cd/m2; contrast 5000:1; viewing angle up to 170°/160°
Touch: 10-finger multi-touch, glove-friendly; capacitive option with optical bonding
Interfaces: DisplayPort, mini DisplayPort, Audio out, USB Ex i, USB 3.1 Gen1, USB 2.0, 2x LAN (Gigabit), 2x RS232/422/485
Protection & mechanical: IP66 (Type 4X; RFID option indoor use only), powder-coated marine-grade aluminum (EN AW-5754); dimensions 577 x 466 x 233 mm; mass approx. 11.4 kg (13.4 kg with AC PSU)
Operating conditions: -20 ... 50 °C operating; -20 ... 65 °C storage; up to 93% RH at 50 °C non-condensing; passive cooling
Approvals (selected): UL (E223772, E492874), ATEX (UL 22 ATEX 2481X), IECEx (ULD 22.0019X), CCC (2024322309005748)

Technical specifications

• Model: RM-320S-*B-*
• Product family: VisuNet FLX
• CPU: Intel® Celeron™ 3965U
• RAM options: 4 GB or 8 GB DDR4-2133
• Storage: 64 GB M.2 SATA 3 III
• Display: 21.5" Full HD, LED backlight
• Touch: 10-finger multi-touch, glove-friendly
• RFID: optional RFID20-* reader
• Interfaces: DP, miniDP, USB Ex i, USB 3.1, USB 2.0, Audio, 2x LAN, 2x RS232/422/485
• Protection: IP66; Type 4X notes for RFID
• Operating temp: -20 ... 50 °C
• Dimensions & weight: 577 x 466 x 233 mm; approx. 11.4 kg
