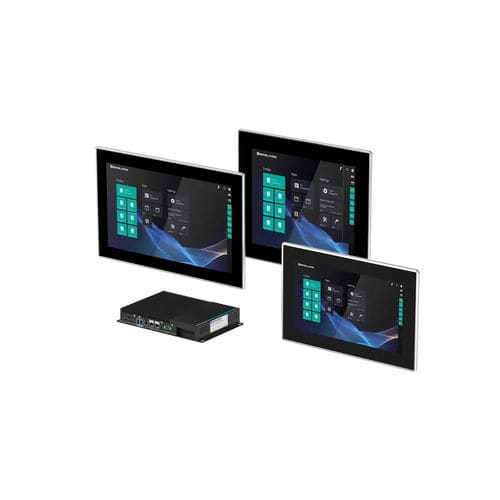

LED backlight panel PC RM-320P

capacitive touch screenPCAP touchscreenLCD

Product description
Panel-mount Remote Monitor RM-320P-* from the VisuNet FLX family. Available as a thin client or as an industrial Panel PC with configurable display sizes, touch options and industrial-grade hardware.

Key benefits

• High application flexibility with identical basic components configurable to requirements
• Thin client mode (VisuNet RM Shell firmware)
• Industrial Panel PC option: front panel IP66 / back IP20
• Simple panel installation with available mounting kits
• Global certifications including explosion protection approvals

Overview / Features

• Type: Remote Monitor (panel mount)
• Processor options: Intel® Celeron™ 3965U
• Configurable RAM and storage (industrial / wide temperature grades)
• Display options: 22" (Full HD), 19" (SXGA), 15.6" (various models) — capacitive multi-touch optional
• Interfaces: DisplayPort, mini DisplayPort, audio line-out, USB (incl. Ex i prepared), LAN, serial (RS232/422/485)
• Approvals: UL, ATEX, IECEx, CCC and applicable EMC / RoHS standards

Technical data (selected)
General specifications
Type: Remote Monitor

Hardware
Processor: Intel® Celeron™ 3965U
RAM (configurable): industrial grade A: 1x 4 GB / B: 1x 8 GB DDR4-2133; wide temp grade K: 1x 4 GB / L: 1x 8 GB DDR4-2133
Mass storage: 1x M.2 2242/2280 M-Key (PCIe + SATA 3); configurable 64 GB M.2 SATA III options

Supply
Input current: max. 3 A, max. 60 W
DC supply: 20–28 V DC / 4.0 A (SELV/PELV or class 2)

Display
Type: LCD with LED backlight
Sizes: 22KT/22GT/22FC: 21.5"; 19SC: 19"; 15FC: 15.6"
Resolutions: Full HD (1920×1080) for 22/15.6; SXGA (1280×1024) for 19"
Color depth: 24 bit; typical contrast/brightness vary by model

Input devices
Touch: Configurable 10-finger capacitive multi-touch, glove-friendly; optical bonding depends on model

Interface
1× DisplayPort 1.2 (DP++); 1× mini DisplayPort 1.2 (DP++ with mono locking screw); 1× audio line-out; 2× USB Ex i (prepared); 2× USB 3.1 Gen1; 1× USB 2.0; 2× LAN (RJ45, 10/100/1000); 2× RS232/422/485 (BIOS configurable) with peripheral power options

Directive conformity and standards
Relevant EMC, ATEX/IECEx and RoHS standards apply (see detailed approvals).

Software
OS: VisuNet RM Shell 6 (based on Windows® 10 IoT Enterprise LTSC 2021 x64). Optional IGEL OS 11 / IGEL OS 12; ThinManager ready.

Ambient conditions
Operating temp classes: A: 0…45 °C; B: -20…55 °C (requires wide temp components and optically bonded display)
Storage temp: -20…65 °C; relative humidity max. 93% at 40 °C (non-condensing). Passive cooling; max. operating altitude 2000 m.

Mechanical specifications
Degree of protection: front IP66 / Type 4X; back IP20
Material: front bezel stainless steel AISI304; backside painted aluminium sheet
Installation: panel mount (mounting kits available)
Weight & dimensions: model dependent (examples: 22" ≈ 567×358×68 mm, ~8 kg; 15.6" ≈ 434×283.4×67 mm, ~5.4 kg)

Approvals (selected)
UL, ATEX, IECEx, CCC certifications; see manufacturer documentation for detailed markings and zone/division information.

caractéristiques / spécifications techniques

• Model / Denomination: RM-320P-*
• Brand: Pepperl+Fuchs (VisuNet FLX)
• Processor: Intel® Celeron™ 3965U
• RAM: configurable 4 GB / 8 GB DDR4-2133 (industrial or wide temp grades)
• Storage: M.2 2242/2280 (PCIe + SATA 3), configurable (64 GB options)
• Display: 22", 19", 15.6" — Full HD or SXGA, touch optional
• Power: 20–28 V DC; max. 3 A, max. 60 W
• Protection: front IP66 / rear IP20
• Interfaces: DP, mini DP, audio out, USB (incl. Ex i prepared), 2× LAN, 2× serial
• OS options: VisuNet RM Shell 6; optional IGEL OS
• Certifications: UL, ATEX, IECEx, CCC, EMC and RoHS standards
