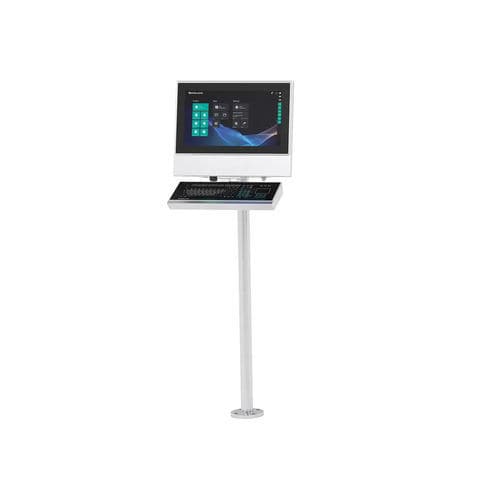

RM-320S-*A-* — Remote Monitor system with enclosure (marketing alias: VisuNet FLX)

Description
Remote Monitor system with enclosure designed for industrial environments, offering modular hardware, thin-client operation and optional integrated RFID.

Key Benefits at a Glance

• Fully modular design enabling easy migration of individual components
• Large application flexibility due to identical configurable basic components
• Thin Client solution (VisuNet RM Shell firmware)
• Global certifications including ATEX/IECEx, UL and CCC
• Optional preinstalled RFID20-* reader

General specifications
Type: Remote Monitor

Hardware
Processor: Intel® Celeron™ 3965U
RAM: A: 1x 4 GB DDR4-2133 (industrial temperature grade); B: 1x 8 GB DDR4-2133 (industrial temperature grade)
Mass storage: Storage interface: 1x M.2 2242/2280 M Key, PCIe + SATA 3; Storage: 64 GB M.2 SATA 3 (industrial temperature grade)

Supply
AC (A): 115/230 V a.c. (100 ... 240 V a.c.), max. 0.7 A, max. 70 W (see Power Supply PS1000-A6-24.5 manual for connections)
DC (D): 20 ... 28 V d.c. / 2.8 A (SELV/PELV or class 2) (see VisuNet FLX Panel Mount manual for connections)

Indicators / operating means
Display
Type: Liquid Crystal Display (LCD) with LED backlight
Screen size: 54.61 cm (21.5 inch)
Resolution: 1920 x 1080 pixels (Full HD), aspect ratio 16:9
Color depth: 24 bit (16.7 M)
Contrast ratio: Typically: 22KT, 22GT: 1000:1; 22FC: 5000:1
Brightness (configurable options): 22KT, 22GT: 250 cd/m2; 22FC: 300 cd/m2
Viewing angle: 22KT, 22GT: 178° in all directions; 22FC: 170° horizontal, 160° vertical
Backlight life span: 22GT: 30,000 hrs typical half life at 25 °C; 22KT, 22FC: 50,000 hrs

Input devices
Touch screen: 10-finger multi-touch, glove-friendly. Configurable options: 22KT, 22GT: capacitive touch without optical bonding; 22FC: capacitive touch with optical bonding
Keyboard: Optional foil keyboard with different pointing device options
RFID reader: Optional integrated in the VisuNet FLX housing; configuration options: TWN4 MultiTech 3 M LF HF or TWN4 MultiTech 3 LEGIC M LF HF

Interface
1 x DisplayPort 1.2 (DP++)
1 x mini DisplayPort 1.2 (DP++ with mono locking screw)
1 x Audio Line-out
2 x USB Ex i ports prepared for Pepperl+Fuchs intrinsically safe keyboard
2 x USB 3.1 Gen1 (5 Gbps) ports
1 x USB 2.0 port
2 x LAN ports (RJ45, 10/100/1000 Mbps)
2 x RS232/422/485 (BIOS configurable) with 5V/12V to power peripherals (1 x DB9 male + 1 x RJ45)

Directive conformity
Electromagnetic compatibility (Non-RFID products only): Directive 2014/30/EU — EN 61000-6-4:2007; EN 61000-6-4:2007/A1:2011; EN 61326-1:2013
Explosion protection: Directive 2014/34/EU — EN IEC 60079-0:2018; EN IEC 60079-7:2015/A1:2018; EN 60079-11:2012; EN IEC 60079-31:2024
Radio and telecommunication terminal equipment (RFID products only): Directive 2014/53/EU — EN 301489-1 V2.2.3:2019; EN 301489-3 V2.3.2:2023; EN 300 330 V2.1.1:2017; EN 61326-1:2013; EN 61000-6-4:2007; EN 61010-1:2010; EN 62479:2010; EN 62311:2008
RoHS: Directive 2011/65/EU (RoHS) — EN IEC 63000:2018

Software
Operating system: VisuNet RM Shell 6 (based on Windows® 10 IoT Enterprise LTSC 2021 x64)
Optional: I: IGEL OS 11 (Linux, without licence); J: IGEL OS 12 (Linux, without licence); T: ThinManager Ready

Ambient conditions
Operating temperature: 0 ... 40 °C (32 ... 104 °F)
Storage temperature: -20 ... 65 °C (-4 ... 149 °F)
Relative humidity: max. relative humidity 93% at 40 °C (non-condensing) according to EN60068-2-78
Climatic conditions: Passive cooling, no rotating parts
Operating altitude: max. 2000 m
Shock resistance: 18 shocks 15 g, 11 ms all axis, IEC 60068-2-27
Vibration resistance: 10 ... 150 Hz, +/- 0.075 mm, 1g, 10 cycles per axis according to EN60068-2-6

Mechanical specifications
Degree of protection: IP66 (Type 4X with RFID option for indoor use only)
Material: Housing: Stainless steel AISI304 (1.4301); Surface finish: bead blasted, typical surface roughness 0.8 µm
Installation: System with enclosure
Mass: approx. 16 kg; approx. 18 kg with AC Power Supply
Dimensions: 577 mm x 466 mm x 233 mm

International approvals
UL approval: Approved for UL OrdLoc; UL approval E223772; UL61010-1 Ed.3; UL 61010-2-201 Ed2; CAN/CSA C22.2 No 61010-1-12; CAN/CSA C22.2 No 61010-2-201; UL approval E492874 for Non-Incendive circuits (CL I, DIV 2 ... etc.) — mounting and installation per drawings and instructions
ATEX: UL 22 ATEX 2481X; ATEX marking example: II 3 G Ex ec [ic Gc] IIC T4 Gc / II 3 D Ex tc [ic Dc] IIIC T85°C Dc
IECEx: IECEx ULD 22.0019X; IECEx marking example: Ex ec [ic Gc] IIC T4 Gc / Ex tc [ic Dc] IIIC T85°C Dc
CCC: Certificate 2024322309005748

Technical specifications

• Model: RM-320S-*A-*
• Brand: Pepperl+Fuchs (VisuNet FLX family)
• Processor: Intel® Celeron™ 3965U
• RAM options: 4 GB or 8 GB DDR4 industrial
• Mass storage: 64 GB M.2 SATA 3; M.2 slot (PCIe + SATA 3)
• Display: 54.61 cm (21.5 inch), Full HD 1920 x 1080, LCD LED backlight
• Touch: 10-finger multi-touch, glove-friendly (configurable)
• Interfaces: DP, miniDP, audio out, multiple USB (including Ex i), 2x LAN, RS232/422/485
• Power: AC option (100–240 V a.c., max 70 W) or DC 20–28 V d.c. (2.8 A)
• Protection: IP66 / Type 4X (with indoor RFID limitation)
• Housing: Stainless steel AISI304
• Dimensions (W x H x D): 577 x 466 x 233 mm
• Mass: ~16 kg (~18 kg with AC PSU)
• Operating temp.: 0 to 40 °C; Storage temp.: -20 to 65 °C
• Approvals: UL, ATEX, IECEx, CCC and other international certifications as specified
