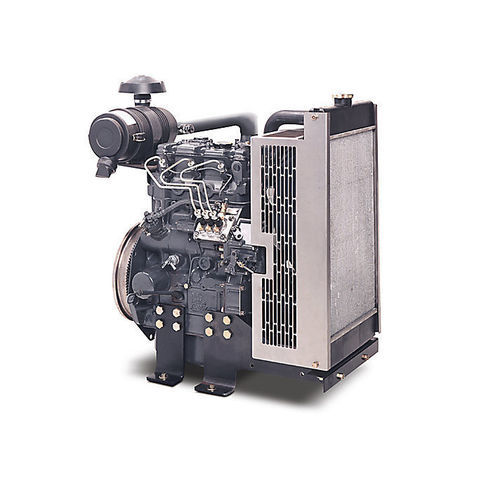

Diesel engine 403D-15

3-cylinderin-linefor construction equipment

Overview
The Perkins 400 Series covers engines from 0.5 to 2.2 litres. The 3‑cylinder Perkins 403D-15 offers a compact mid-range option optimized for small industrial applications, combining efficient performance, low operating costs and straightforward maintenance thanks to its mechanical fuel system.

Features at a glance

• Low cost of ownership: Competitive fuel economy and performance across applications. Designed for reliability with overlapping power bands and a wide range of options to suit machine and market requirements. Standard warranties: one year for constant speed, two years for variable speed models.
• Compact design: Suitable for skid steer loaders, mini excavators, wheel loaders, welders, access platforms, lighting towers, small tractors, air compressors, turf care and materials handling equipment. Configurable to Stage IIIA/Tier 4 Interim or Stage IIIB/Tier 4 Final depending on market.
• Performance and refinement: Smooth power delivery across 2, 3 and 4 cylinder models (8.2–50 kW / 11–67 hp). Available with indirect or direct injection for reduced noise and improved combustion characteristics.

Standard equipment (selected)

• Air system: Cast iron exhaust manifold (side outlet), inlet manifold, mounted air cleaner.
• Electrical and electronics: 12 V alternator, 12 V starter motor, Electronic Shut Off Solenoid (ESOS).
• Cooling system: Belt-driven coolant pump, coolant temperature switch, mounted radiator and fan.
• Flywheel and flywheel housing: SAE 4 flywheel housing, SAE flywheel size 7½.
• Fuel system: Fuel injection pump, fuel filter.
• General: Cast iron engine block, glow plug starting aid.
• Oil system: Lubricating oil pressure switch, lubricating oil sump, spin-on lubricating oil filter.

Power Rating (representative values)
Maximum Power: 24.2 kW (32.5 hp equivalent)
Maximum Torque: 94.4 Nm @ 1800 rpm (69.6 lb-ft @ 1800 rpm equivalent)
Rated Speed: 2800–3000 rpm
Minimum Power: 20.8 kW (27.9 hp equivalent)

Emission standards
EU Stage IIIA / U.S. EPA Tier 4 Interim equivalent, China NRIII

General engine data
Number of cylinders: 3 inline
Cycle: 4 stroke
Bore: 84 mm (3.3 in)
Stroke: 90 mm (3.5 in)
Displacement: 1.5 l (91 in³)
Compression ratio: 22.5:1
Aspiration: Naturally aspirated
Combustion system: Indirect injection
Rotation from flywheel end: Anti-clockwise
Cooling system: Liquid

Engine dimensions and weights (typical)
Length: 820 mm (32.3 in)
Width: 497 mm (19.6 in)
Height: 793 mm (31.2 in)
Dry weight: 197 kg (434 lb)

Technical specifications

• Model: 403D-15
• Series: Perkins 400 Series (3-cylinder)
• Maximum power: 24.2 kW
• Minimum power: 20.8 kW
• Maximum torque: 94.4 Nm @ 1800 rpm
• Rated speed: 2800–3000 rpm
• Emissions: EU Stage IIIA / U.S. EPA Tier 4 Interim equivalent, China NRIII
• Displacement: 1.5 l
• Bore x Stroke: 84 mm x 90 mm
• Compression ratio: 22.5:1
• Aspiration: Naturally aspirated
• Combustion: Indirect injection
• Cooling: Liquid cooled
• Number of cylinders: 3 inline
• Dry weight: 197 kg
• Typical dimensions (L×W×H): 820 mm × 497 mm × 793 mm
• Standard equipment highlights: cast iron engine block and exhaust manifold, mounted air cleaner, radiator and fan, 12 V alternator and starter, fuel injection pump, fuel and oil filtration, glow plug starting aid, Electronic Shut Off Solenoid (ESOS)
