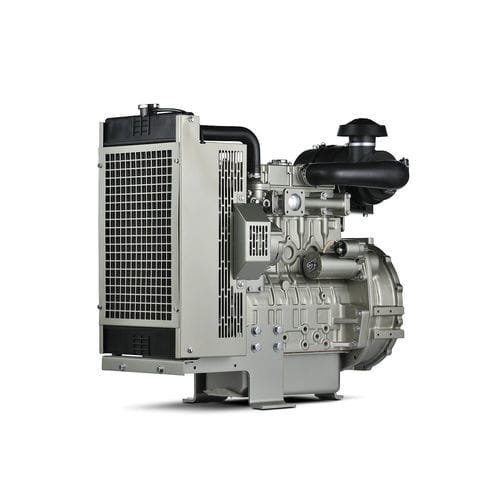

Diesel engine 404D-22T

4-cylinderturbochargedin-line

Overview
The Perkins 404D-22T is a 2.2 litre, 4-cylinder turbocharged industrial diesel engine from the Perkins 400 Series. Designed for off-highway and industrial applications, it balances compact dimensions, refined operation and competitive fuel economy. Available with indirect injection (IDI) and common rail fuel systems to suit varied application requirements.

Features At A Glance

• Low ownership cost – Competitive fuel consumption and engineered reliability reduce lifecycle costs. Warranties: one year for constant-speed and two years for variable-speed models as standard. Global Perkins product support and service network available.
• Compact design – Small footprint and configurable options make the engine suitable for skid steer loaders, mini excavators, wheel loaders, lift platforms, lighting towers, small tractors, air compressors, turf-care and materials-handling equipment.
• Performance and refinement – Smooth power delivery across the 400 Series range (8.2–50 kW) with selective use of indirect and direct injection to deliver low noise and refined operation.

Key specifications (summary)
Maximum Power: 45.5 kW (61 hp)
Maximum Torque: 189.1 Nm @ 1800 rpm (139.4 lb-ft @ 1800 rpm)
Emissions: EU Stage IIIA / U.S. EPA Tier 4 Interim equivalent, China NRIII

Standard Equipment (selected)

• Air System: cast iron exhaust manifold (side outlet), inlet manifold, mounted air cleaner
• Electrical & Electronics: alternator 12 V 65 A, Electronic Shut Off Solenoid (ESOS), starter motor 12 V
• Cooling System: belt driven coolant pump, coolant temperature switch, mounted radiator and fan
• Flywheel & Flywheel Housing: SAE 4 flywheel housing, SAE flywheel size 190.5 mm (7½ in)
• Fuel System: fuel filter, fuel injection pump
• General: cast iron engine block, glow plug starting aid
• Oil System: lubricating oil pressure switch, lubricating oil sump, spin on lubricating oil filter

Technical specifications

• Model (commercial designation): 404D-22T
• Maximum Power: 45.5 kW (61 hp)
• Maximum Torque: 189.1 Nm @ 1800 rpm (139.4 lb-ft @ 1800 rpm)
• Rated Speed: 2800 rpm
• Minimum Power: 31.6 kW (42.4 hp)
• Emissions: EU Stage IIIA / U.S. EPA Tier 4 Interim equivalent, China NRIII
• Number of Cylinders: 4 inline
• Cycle: 4 stroke
• Bore: 84 mm (3.3 in)
• Stroke: 100 mm (3.9 in)
• Displacement: 2.2 L (135 in³)
• Compression Ratio: 23.3:1
• Aspiration: Turbocharged
• Combustion System: Indirect injection
• Rotation from Flywheel End: Anti-clockwise
• Aftertreatment: -
• Cooling System: Liquid
• Engine Dimensions (approx., dependent on options): Length 973 mm (38.3 in), Width 590 mm (23.2 in), Height 973 mm (38.3 in)
• Dry Weight: 228 kg (502.6 lb)
• Notes: Final dimensions dependent on selected options
