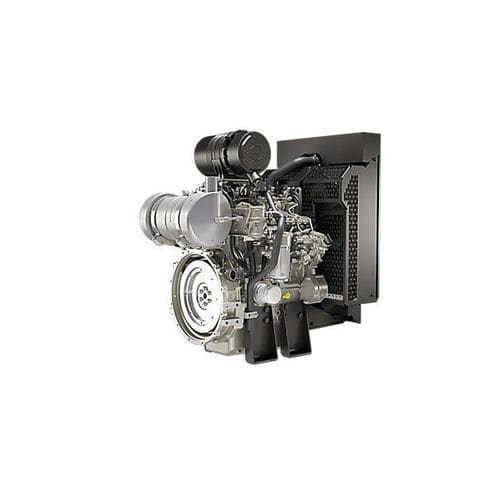

Diesel engine 404J-E22T

4-cylinderturbochargedin-line

Overview
The Perkins® 404J-E22T IOPU provides a complete plug-and-play power solution to meet EU Stage V, U.S. EPA Tier 4 Final and Japan 2014 (Tier 4 Final) emission standards. With a wide choice of options, engine configurations and robust technologies, the 404J-E22T can be integrated into equipment with minimal re-engineering to help reduce costs.

Features at a glance

• Low-cost installation – IOPU is available with aftertreatment and air filter ready mounted from factory. Multiple installation options reduce overall IOPU size and simplify OEM installation.
• Powerful performance – Broad range of options for agricultural, materials handling, construction, mining, aircraft ground support and other industrial applications. Improved power and torque versus previous generation, with fuel efficiency optimised for a wide range of non-road operating cycles.
• Straightforward maintenance – Oil service intervals every 500 hours; service points located on the cold side of the engine for safer servicing. Factory-fitted Diesel Particulate Filter (DPF) sized for the life of the engine with no workcycle interruption for regeneration.
• Local support, global coverage – Perkins® supports OEMs and customers via a global distributor network and trained service partners, providing product knowledge, genuine parts and diagnostic capabilities in many countries.

Key specs (summary)

• Maximum Power: 45 kW
• Maximum Torque: 222 Nm @ 1600 rpm
• Rated Speed: 2800 rpm
• Emissions: EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)

Standard equipment (selected)

• Air system: Turbocharged
• Electrical & electronics: Electronic control module (chassis mounted); flexible/configurable software features; SAE J1939 CAN bus integration; waterproof wiring harness, connectors and sensors
• Starting aids: Glow plug starting aid; starter motor 12 volts; alternator 12 volts, 85 amp
• General: Multiple engine rating options; cast iron engine block; block heater provision; extensive range of factory options
• Power take-off (PTO): SAE A PTO drive
• Flywheel & housing: Flywheel and flywheel housing options
• Fuel system: Electronic 2000 bar common rail fuel system; fuel filter with water detector

Technical specifications

• Power rating
  Maximum Power: 45 kW
  Maximum Torque: 222 Nm @ 1600 rpm
  Rated Speed: 2800 rpm
  Minimum Power: 36.4 kW
• Emission standards
  EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
• General
  Number of cylinders: 4 inline
  Cycle: 4 stroke
  Bore: 84 mm
  Stroke: 100 mm
  Displacement: 2.2 l
  Compression ratio: 17.0:1
  Aspiration: Turbocharged
  Combustion system: Direct injection
  Rotation from flywheel end: Anti-clockwise
  Aftertreatment: DOC + DPF
  Cooling system: Liquid
• Engine dimensions*
  Length: 965 mm
  Width: 622 mm
  Height: 985 mm
  Dry weight: 281 kg
  *Final dimensions dependent on selected options
