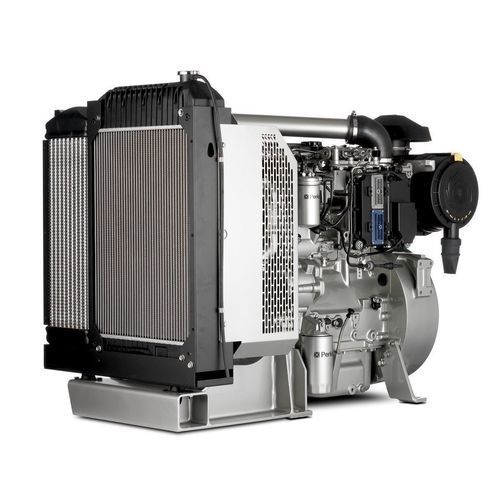

Diesel engine 1104D-44T

4-cylinderturbochargedin-line

Overview
The Perkins 1104D-44T open power unit is a 4-cylinder, 4.4-litre industrial engine solution designed for on- and off-road power applications. Available with mechanical or electronically controlled common-rail fuel systems, it meets UN ECE R96 Stage IIIA and China Nonroad Stage III emissions levels and is offered in configurations suitable for a wide range of global fuels, including biodiesel.

Features At A Glance

• Ease of maintenance: 500-hour service intervals and single-side service access to reduce downtime.
• Upgrade and replacement simplicity: common front/rear ends and connection points across the 1100 Series enable straightforward engine swaps.
• After-sales support: backed by Perkins-trained technical experts and global distribution network for parts and service support.
• Filtration and fuel flexibility: high-quality oil and fuel filtration (Ecoplus fuel filtration available) and compatibility with diverse fuel qualities worldwide.

Key Specifications

• Maximum power: 66 kW
• Maximum torque: 392 Nm @ 1400 rpm
• Displacement: 4.4 L
• Number of cylinders: 4 inline
• Emissions: UN ECE R96 Stage IIIA; China Nonroad Stage III
• Rated speed: 2200 rpm
• Approx. dry weight: 536 kg
• Approx. dimensions (L×W×H): 1277 × 687 × 965 mm

Standard Equipment (selected)

• Air system: mounted air filter and turbocharger
• Electrical & electronics: alternator (12 or 24 V), starter motor (12 or 24 V)
• Cooling system: fan drive, fan (pusher or puller), radiator, water pump
• Flywheel & housing: SAE No. 3 flywheel housing
• Fuel system: fuel filter
• General: engine mounting brackets, glow plug starting aid
• Oil system: oil cooler and filter, timing case oil filler
• Power take-off (PTO): SAE A or SAE B front PTO (142/280 Nm)

Technical specifications

• Model / Commercial name: 1104D-44T
• Series: Perkins 1100 Series
• Cycle: 4-stroke
• Bore: 105 mm
• Stroke: 127 mm
• Compression ratio: 18.2:1
• Aspiration: turbocharged
• Combustion system: direct injection
• Rotation (from flywheel end): anti-clockwise
• Cooling system: liquid
• Maximum power: 66 kW
• Minimum power: 58.5 kW
• Maximum torque: 392 Nm @ 1400 rpm
• Rated speed: 2200 rpm
• Emissions standard: UN ECE R96 Stage IIIA; China Nonroad Stage III
• Engine dimensions (approx.): Length 1277 mm; Width 687 mm; Height 965 mm
• Dry weight (approx.): 536 kg
• Notes: final dimensions dependent on selected options
