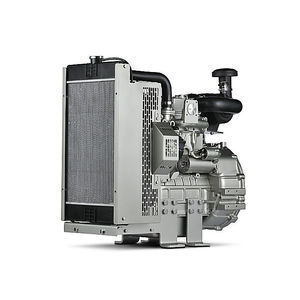

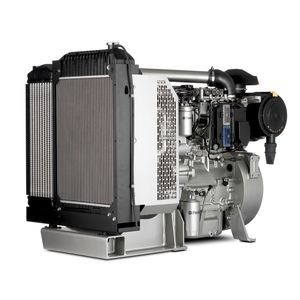

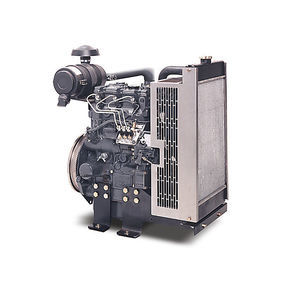

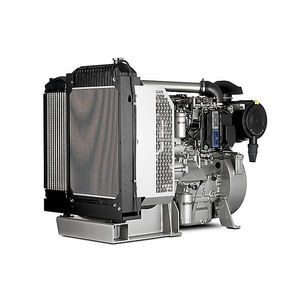

Diesel engine 904J-E36TA

4-cylinderturbochargedin-line

Overview
The Perkins® 904 Series Industrial Open Power Unit (IOPU) delivers a complete engine package compliant with EU Stage V, U.S. EPA Tier 4 Final and Japan 2014 emissions regulations. The IOPU integrates aftertreatment and control systems with modular options to simplify machine integration and reduce re‑engineering time.

Key specifications (table)
Maximum power: 100 kW (134 hp) — Maximum torque: 550 Nm @ 1500 rpm (406 lb-ft @ 1500 rpm) — Rated speed: 2000–2200 rpm — Minimum power: 70 kW (94 hp) — Emissions: EU Stage V / U.S. EPA Tier 4 Final / Japan 2014 (Tier 4 Final)

Features At A Glance

• Low cost machine installation — ECM and aftertreatment sensors pre-installed; bespoke wiring harness included for simplified hookup. IOPU-mounted fuel filter with water-in-fuel sensor for straightforward low-pressure fuel system installation. Optional engine control panel available for monitoring and speed control.
• Industry leading flexibility — Multiple configurations for different machine types. Standard and heavy-duty options for radiator, air and fuel filtration. Electrical systems in 12V or 24V.
• Lifetime of low cost — Fuel consumption optimised for diverse off-highway cycles. Hydraulic tappets, multi-vee belts and 500‑hour service intervals reduce operating costs.

Standard equipment (highlights)
Aftertreatment Equipment

• Aftertreatment mounted on engine as standard (DOC + DPF + SCR)
• Range of DEF tanks and DEF lines available

Air System

• Standard and heavy-duty air cleaners available

Cooling System

• 50:50 water–glycol mix
• Detailed guidance on cooling system design and validation to ensure machine reliability
• Engine-mounted radiator with top tank rated to 108°C (226°F)
• Pusher or puller fan options; radiator erosion screen available

Electrical and Electronics

• 12V and 24V systems
• Data interface via CANbus J1939
• Instrument control panel available
• Full electronic control
• Glow plugs for improved cold starting with minimal battery impact
• High power alternator and starter motor options
• Sensors and robust wiring harness included

Flywheel and Flywheel Housing

• SAE3 flywheel housing and flywheel with pilot bore
• Wide choice of interfaces for common transmissions and hydraulic pumps

Fuel System

• Electronic high-pressure common rail
• Fuel filter IOPU-mounted
• Standard and heavy-duty fuel filtration options
• Water sensor included for early warning

General

• Cold-start capability (standard equipment to -25°C)
• Supplied painted or lacquered

Oil System

• Oil filter mounting options on either side of engine, plus remote
• Dipstick position and length options
• High incline sump: 35° continuous in all directions (suitable for steep slope operation)

Power Take-Off (PTO)

• SAE-A and SAE-B interfaces available

Technical specifications

• Model: 904J-E36TA
• Number of cylinders: 4 inline
• Cycle: 4-stroke
• Bore: 98 mm (3.85 in)
• Stroke: 120 mm (4.72 in)
• Displacement: 3.6 L (219.7 in³)
• Compression ratio: 17.0:1
• Aspiration: Turbocharged aftercooled
• Combustion system: Direct injection
• Rotation (from flywheel end): Anti-clockwise
• Aftertreatment: DOC + DPF + SCR (integrated)
• Cooling system: Liquid
• Maximum power: 100 kW (134 hp)
• Maximum torque: 550 Nm @ 1500 rpm (406 lb-ft @ 1500 rpm)
• Rated speed: 2000–2200 rpm
• Minimum power: 70 kW (94 hp)
• Engine dimensions (typical, dependent on options): Length 1177 mm, Width 808 mm, Height 1036 mm
• Dry weight (typical): 551 kg (1214 lb)
