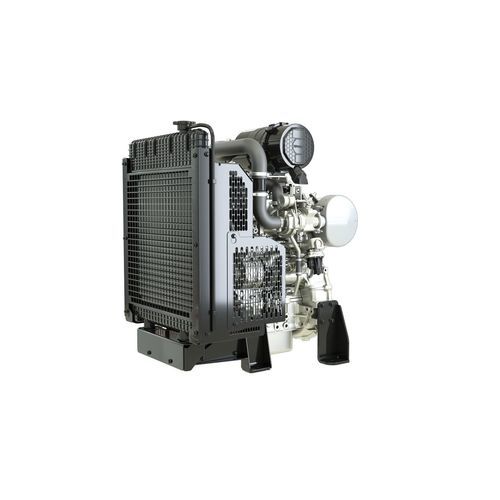

Diesel engine 403J-E17T

3-cylinderturbochargedin-line

Overview
The Perkins® 403J-E17T IOPU provides a complete plug-and-play power solution to meet EU Stage V, U.S. EPA Tier 4 Final and Japan 2014 (Tier 4 Final) emission standards. With a wide choice of options, engine configurations and robust technologies, you can integrate the 403J-E17T into equipment with minimal re-engineering that can help save valuable costs.

Features At A Glance

• Low cost installation: Perkins IOPU is available with aftertreatment and air filter ready mounted from factory. Multiple installation options provide easy installation for OEMs and minimise the IOPU total size to enable a low cost installation into your machine.
• Powerful performance: Broad range of options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications. Improved power by 24% and torque by 38% over the previous generation Perkins engine. Fuel efficiency optimised to match operating cycles of a wide range of non-road equipment.
• Straightforward maintenance: Oil service interval of 500 hours. Service points located on the cold side of the engine for safer service. Factory fitted Diesel Particulate Filter designed for the life of the engine with no workcycle interruption for regeneration.

Key specifications (top)
Maximum Power: 36 kW
Maximum Torque: 166 Nm @ 1600 rpm
Emissions: EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)

Standard Equipment

• Air System: Turbocharged
• Electrical and Electronics: Alternator 12 volts, 85 amp; Electronic control module – chassis mounted; Flexible and configurable software features and SAE J1939 CAN bus support; Glow plug starting aid; Starter motor 12 volts; Waterproof wiring harness, connectors and sensors designed for harsh off-highway environments.
• Flywheel and Flywheel Housing: Flywheel and flywheel housing options available.
• Fuel System: Electronic 2000 bar common rail fuel system; Fuel filter with water detector.
• Power Take-Off (PTO): SAE A PTO drive.
• General: Cast iron engine block; extensive range of options available to match specification precisely to needs.

Product Specifications
Power Rating
Maximum Power: 36 kW
Maximum Torque: 166 Nm @ 1600 rpm
Rated Speed: 2800 rpm

Emission Standards
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)

General
Number of Cylinders: 3 inline
Bore: 84 mm
Stroke: 100 mm
Displacement: 1.662 l
Compression Ratio: 17.0:1
Aspiration: Turbocharged
Combustion System: Direct Injection
Rotation from Flywheel End: Anti-clockwise
Aftertreatment: DOC + DPF

Engine Dimensions*
Length: 854 mm
Width: 596 mm
Height: 961 mm
Dry Weight: 224 kg

Notes
*Final dimensions dependent on selected options

Technical characteristics

• Model: 403J-E17T
• Brand: Perkins
• Maximum power: 36 kW (at rated conditions)
• Maximum torque: 166 Nm @ 1600 rpm
• Rated speed: 2800 rpm
• Emissions: EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
• Number of cylinders: 3 inline
• Bore x Stroke: 84 mm x 100 mm
• Displacement: 1.662 l
• Compression ratio: 17.0:1
• Aspiration: Turbocharged
• Combustion: Direct injection, electronic common rail (2000 bar)
• Aftertreatment: DOC + DPF (factory fitted)
• Electrical: 12 V alternator (85 A), 12 V starter, chassis-mounted ECM, SAE J1939 CAN bus support
• PTO: SAE A
• Dry weight: 224 kg
• Dimensions (L×W×H): 854 mm × 596 mm × 961 mm (final dependent on options)
• Maintenance: oil service every 500 hours; service points located on cold side
