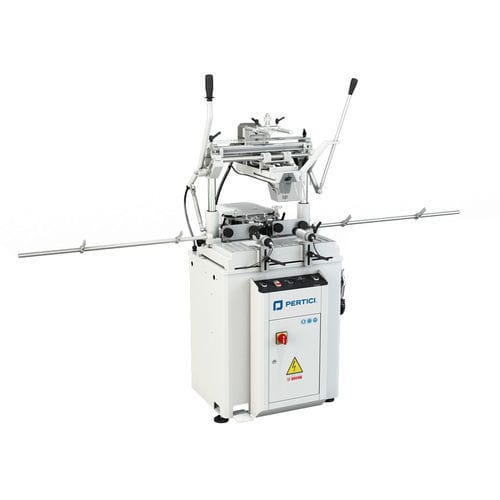

Manual copy router CR 106A

manually-controlledsingle-spindlefor PVC

Overview
Hand-operated single-head copy router designed for machining aluminium and PVC (including steel-reinforced PVC). Head translation via indirect lever with large vertical travel; axis guidance on ball bearing bars and bushes ensures long-term smoothness and precision.

Applications

• Aluminium
• PVC, including steel-reinforced PVC

Features

• 3-point drilling unit for handle and lock hole machining with pneumatic control
• Hydro-pneumatic drive suitable for aluminium and steel-reinforced PVC machining
• Horizontal pneumatic clamps with low-pressure safety device
• Adjustable depth stop; longitudinal and transversal stops referenced to metric rods
• Possible through machining without turning the workpiece
• Hand-operated touch probe and 3-diameter drill aligned with the tool
• Pneumatic microneedle tool lubrication (emulsified oil)

Technical specifications

• Type: Hand-operated single-head copy router
• Head movement: Translation via indirect lever with large height travel
• Guides: Ball bearing bars and bushes
• Drilling unit: 3-point drilling unit; 3-diameter drill aligned with tool
• Drive: Hydro-pneumatic
• Clamping: Horizontal pneumatic clamps with low-pressure safety device
• Stops: Adjustable depth stop; longitudinal and transversal stops referenced to metric rods
• Through machining: Possible without turning the workpiece
• Probe: Hand-operated touch probe
• Tool lubrication: Pneumatic microneedle lubrication (emulsified oil)
