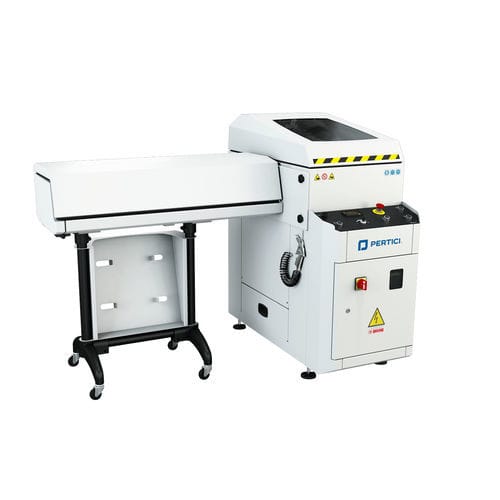

Aluminum end milling machine ML 200

for PVCfor aluminum profilesautomatic

Product overview
Horizontal end milling machine ML 200 with automatic feed and programmable work cycle. High tool rotation speed is adjustable via an electronic variator and displayed on a digital LED screen; suitable for machining painted profiles and out-of-square milling from -45° to +45°.

Main features

• High speed tool rotation, electronic variator, digital LED display
• Out-of-square milling from -45° to +45°
• Quick-change cutter unit with pneumatic control
• Scratch-proof work table
• Integral soundproofed, fully enclosed work area with wide internal visibility
• Feed movement on recirculating ball bearing guides and pads for long-term smoothness and precision
• Self-tilting stop cancels contact between stop and workpiece during feed
• Hydro-pneumatic feed speed adjustment and clamping system without approach stroke
• Revolver depth stop with 6 adjustable positions
• Impulse tool lubrication (full oil)
• Clamps table cleaning by air blow to speed up the work cycle
• Integrated cutter unit magazine
• Removable swarf collection drawer
• Provision for fume extraction
• Pneumatically operated soundproof tunnel (90° milling only) reduces emitted noise to about 75 dB

Ideal for

• PVC
• Aluminium

Technical specifications

• Tool rotation: high speed, electronic variator, digital LED display
• Out-of-square milling angle: -45° to +45°
• Cutter unit: quick change with pneumatic control; integrated cutter unit magazine
• Work table: scratch-proof
• Work area: integral soundproofed, fully enclosed, wide internal visibility
• Feed movement: recirculating ball bearing guides and pads
• Stop: self-tilting stop to avoid contact during feed
• Feed speed adjustment: hydro-pneumatic
• Clamping system: without approach stroke
• Depth stop: revolver with 6 adjustable positions
• Tool lubrication: impulse (full oil)
• Clamps cleaning: air blow
• Swarf collection: removable drawer
• Fume extraction: provision included
• Noise reduction: pneumatically operated soundproof tunnel (90° milling only), approx. 75 dB
