3-axis milling machine WSA
with swiveling spindlefor PVCwith electronic control

3-axis milling machine - WSA - Pertici S.p.A. - with swiveling spindle / for PVC / with electronic control
3-axis milling machine - WSA - Pertici S.p.A. - with swiveling spindle / for PVC / with electronic control
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
with swiveling spindle
Machined material
for PVC
Other characteristics
automatic, slot, with electronic control, multi-head
Associated function
grooving

Description

Overview

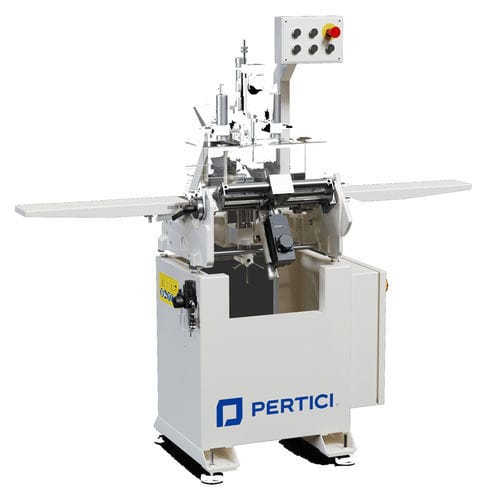

The WSA model is a milling machine designed to produce ventilation and condensation drainage slots on PVC profiles. The machine runs an automatic machining cycle managed by a PLC for consistent processing and repeatability.

Features
  • Three working units; two units can operate simultaneously on two faces of the profile
  • Oblique motor adjustable from 30° to 60° with automatic right/left movement selectable by operator
  • Three high-frequency motors engineered to minimize maintenance requirements
  • PLC-controlled cycle for rapid and repeatable machining
  • No adjustments required to switch between sash and frame machining for the same profile series; easy, intuitive adjustments when changing series


Ideal for
  • PVC profiles


Technical specifications
  • Application: milling ventilation and drainage slots on PVC profiles
  • Working units: 3 (2 can operate simultaneously)
  • Oblique motor inclination: 30°–60° (adjustable, automatic lateral movement)
  • Drive: 3 high-frequency motors (low maintenance)
  • Automation: PLC-managed automatic machining cycle
  • Changeover: no adjustment needed for sash/frame within same profile series; simple adjustments for series change
