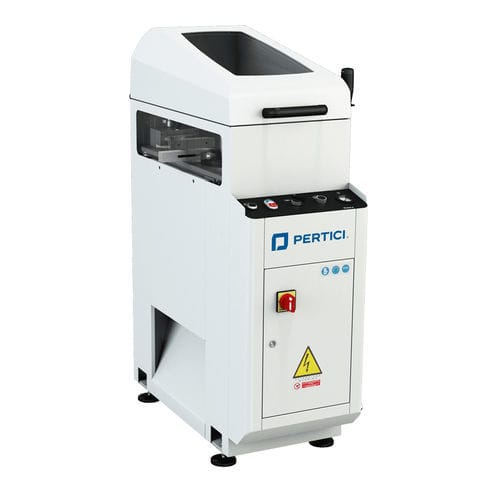

Aluminum end milling machine ML 123

for PVCpneumatic

Overview
Horizontal end milling machine with manual feed and pneumatically operated quick-change cutter unit. Designed for precise profile and edge milling on plastics and non-ferrous materials.

Short description
Performs out-of-square milling from -45° to +45°. Integral work zone protection and a scratch-proof work table ensure consistent part handling. Feed movement runs on recirculating ball bearing guides and pads to maintain smoothness and precision over time. A self-braking motor and pneumatic horizontal and vertical clamps with a low-pressure device enhance operator safety. The revolver depth stop offers 6 adjustable positions. Pneumatic micro-mist (emulsified oil) tool lubrication and the integrated cutter unit magazine speed up the machining cycle. Conveyed chip evacuation keeps the work area clean.

Ideal for

• PVC
• Aluminium

Characteristics / technical specifications

• Type: Horizontal end milling machine
• Feed: Manual feed
• Cutter change: Pneumatically operated quick change of cutter unit
• Out-of-square milling: from -45° to +45°
• Work zone protection: Integral work zone protection
• Work table: Scratch-proof work table
• Feed movement guidance: Recirculating ball bearing guides and pads for smoothness and precision over time
• Motor: Self-braking motor
• Clamping: Pneumatic horizontal and vertical clamps with low pressure device for operator safety
• Depth stop: Revolver depth stop with 6 adjustable positions
• Tool lubrication: Pneumatic micro-mist (emulsified oil) tool lubrication
• Cutter unit storage: Integrated cutter unit magazine
• Chip management: Conveyed chip evacuation for a clean working environment
