InGaAs photodiode XSJ-10-APD2-400X

avalanchePIN

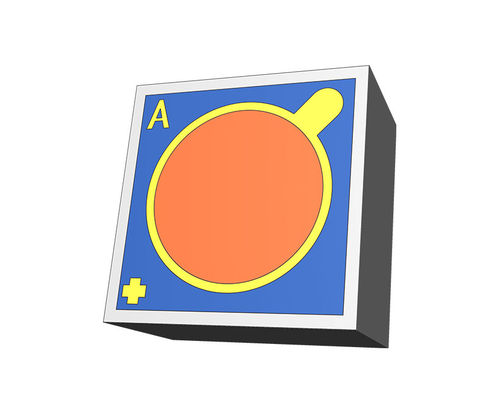

Description Avalanche photodiode chip (APD chip) is a kind of active device that provides a built-in gain and amplifies the photocurrent. This product features is anode on top and cathode on back, with top-illuminated active area size is Φ400μm for easy optical assembly; high responsivity, high multiplication factor and low dark current. The high-performance 622Mbps APD chip package for single tube TO-CAN can improve the sensitivity of optical receiver, applications in low-light-level detection and laser lidar etc. field. Features Φ400μm active area. Anode on top and cathode on back. Low dark current. Excellent responsivity and high gain. Data rate up to 622Mbps above. Excellent reliability: All chips have passed the qualification requirements as specified by Telcordia -GR-468-CORE. 100% testing and inspection. Applications Low-light-level detection. Laser lidar and laser range finder. Spatial light transmission. Optical fiber communication.
