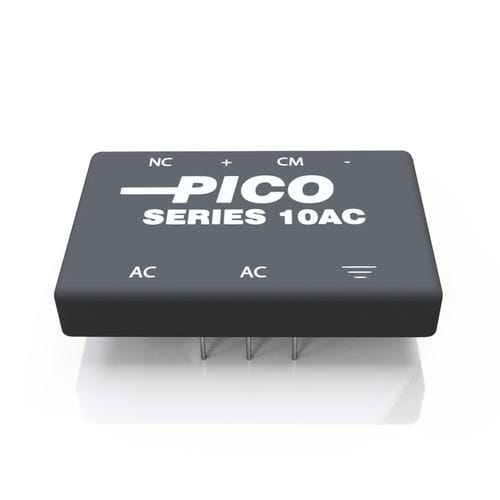

AC/DC power supply 10AC series
single-outputregulateddual-output

AC/DC power supply
AC/DC power supply
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Output
single-output, regulated, dual-output, triple-output
Other characteristics
with short-circuit protection, encapsulated, for printed circuit boards, switching
Power

5 W, 7 W, 10 W

Input voltage

Min.: 90 V

Max.: 130 V

Output voltage

5 V, 12 V, 15 V, 24 V

Current

Min.: 333 mA

Max.: 2,000 mA

Description

Regulated 10 Watt AC-DC Switchers Hi Reliability Hi Efficiency/Isolated Single, Dual, and Triple Outputs Typical Characteristics Test Conditions: 25º C ambient Input Voltage: 90-130 VAC (47-440 Hz) Line/Load Regulation: See specifications below Converter Frequency: 25-35 KHz typ Operating Temperature: -25º C to +70º C ambient Output Voltage Temperature Coefficient: 0.02% / º C Storage Temperature: -55º C. to +125º C Isolation: 1200 VRMS Short Circuit Protection: Continuous This series of low profile 10 Watt AC to DC switchers come in 11 different models. These units offer high efficiency and precise regulation throughout the operating temperature range of -25º C to +70º C ambient, with no heat sink or electrical heating required. The 10AC Series keeps a maximum of 0.500" height while still offering you 1200 volts RMS isolation in a rugged encapsulated case. The convenience of PC mounting and the availability of three outputs should aid your circuit design. Features Low profile 0.500" Low weight Encapsulated semiconductors, conservatively rated for maximum reliability Excellent voltage regulation Excellent load regulation Up to 10 watts output power at 70º C ambient Low output ripple Isolation: 1200V RMS Single, dual and triple outputs No heat sink required Miniature size No output capacitor required Shielding
