Encapsulated power supply TUWC series
AC/DCregulateddual-output

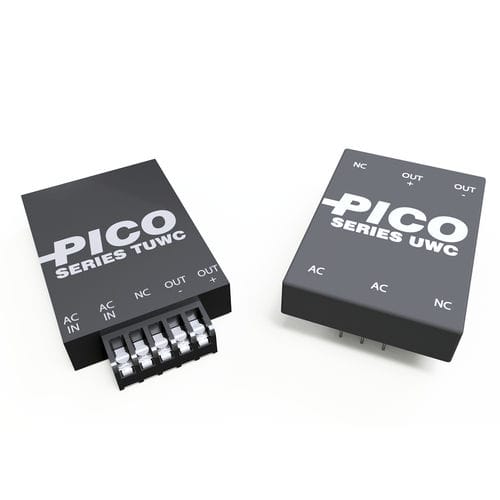

Encapsulated power supply - TUWC series - Pico Electronics - AC/DC / regulated / dual-output
Encapsulated power supply - TUWC series - Pico Electronics - AC/DC / regulated / dual-output
Encapsulated power supply - TUWC series - Pico Electronics - AC/DC / regulated / dual-output - image - 2
Encapsulated power supply - TUWC series - Pico Electronics - AC/DC / regulated / dual-output - image - 3
Add to favorites
Compare this product
Go to the Pico Electronics website for more information

Characteristics

Mounting / format
encapsulated
Type
AC/DC
Output
single-output, regulated, dual-output
Technology
switching
Protection
with short-circuit protection
Connection
with screw terminal block
Applications
for industrial applications
Other characteristics
low-profile, wide input range
Input voltage

Min.: 85 V

Max.: 265 V

Output voltage

Min.: 3.3 V

Max.: 48 V

Current

Min.: 357 mA

Max.: 3,030 mA

Power

Min.: 7.5 W

Max.: 20 W

7.5 W, 10 W, 15 W, 20 W

Description

The UWC & TUWC series is a switching AC-DC power supply available in single and dual outputs. They offer excellent line and load regulation and is continuously protected against short circuits. The highly reliable module is capable of up to 20W power in a wide ambient temperature range -20ºC to +70ºC. These modules are the perfect design choice for your most stringent industrial applications. Features Up to 20W output power Single and dual outputs Through hole or terminal strip Continuous short-circuit protection Universal input range – 85-265VAC Fixed operating frequency Options Expanded operating temp: -40°C to +85°C Select screening per MIL-STD-883: Stabilization Bake: Ref. Method 1008 Temperature Cycle: Ref. Method 1010 Burn-In: Ref. Method 1015 Special Input Voltage, Output Voltage, or Output Power
