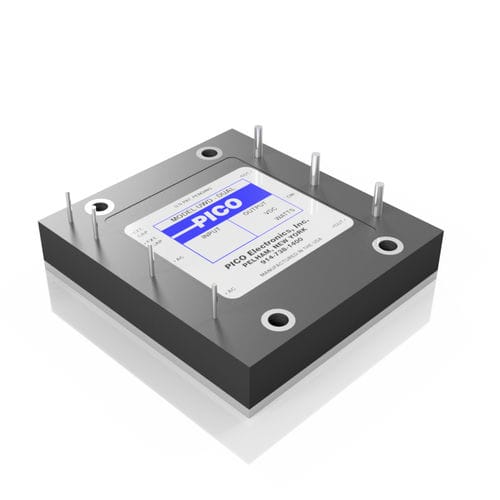

Printed circuit board power supply UWD Series
encapsulatedAC/DCsingle-output

Printed circuit board power supply - UWD Series - Pico Electronics - encapsulated / AC/DC / single-output
Printed circuit board power supply - UWD Series - Pico Electronics - encapsulated / AC/DC / single-output
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Mounting / format
for printed circuit boards, encapsulated
Type
AC/DC
Output
single-output, regulated, dual-output
Technology
switching
Protection
with short-circuit protection
Other characteristics
isolated, compact, low-profile
Input voltage

Max.: 265 V

Min.: 85 V

Output voltage

Max.: 48 V

Min.: 3.3 V

Current

Max.: 9.09 A

Min.: 0.1 A

Power

Max.: 50 W

20 W, 25 W, 30 W, 40 W, 50 W

Min.: 20 W

Description

The UWD series is a switching AC-DC power supply available in single and dual outputs. They offer excellent line and load regulation and continuously protected against short circuits. The 2.5” x 2.3” x 0.5” half brick footprint is capable of up to 50W power in a wide temperature range 0ºC to +85ºC. These modules are highly reliable and perfect design choice for your most stringent industrial applications. Features Single and dual outputs Low profile – 0.5″ height Continuous short-circuit protection Fixed operating frequency Options Expanded operating temp: -40°C to +85°C Select screening per MIL-STD-883: Stabilization Bake: Ref. Method 1008 Temperature Cycle: Ref. Method 1010 Burn-In: Ref. Method 1015 Special Input Voltage, Output Voltage, or Output Power

Catalogs

Series UWD
Series UWD
8 Pages
