AC/DC power supply LAC series

single-outputregulateddual-output

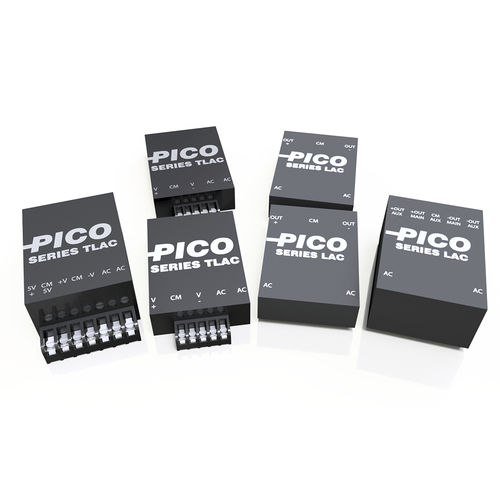

This series of linear AC to DC Power Supplies are available in 46 different models. All single, dual, and triple output models offer excellent line and load regulation while maintaining the output voltage ripple at a minimum. Continuous short circuit protection and isolation are also standard on all models. The convenience of PC mounting, with mounting inserts, allow the use of this encapsulated unit in harsh environments, and the TLAC models offer a terminal strip for easy electrical connection. Typical Characteristics Test Conditions: 25º C ambient Input Frequency: 50-440 Hz Line/Load Regulation: Consult chart Output Voltage Tolerance: ±1% Operating Temperature: -25º C to +70º C Output Voltage Temperature Coefficient: 0.02%/ºC Storage Temperature: -55º C. to +85º C Typical Isolation: 100 megohms Features Terminal Strips available - TLAC Low output ripple = 1 to 2 mV RMS Encapsulated semiconductors, conservatively rated for maximum reliability Excellent voltage regulation Excellent load regulation Typical isolation: 100 megohms Single, dual, and triple outputs No heat sink required No output capacitor required
