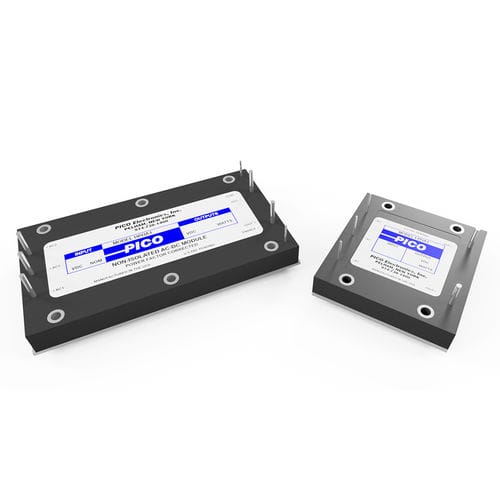

Encapsulated power supply PHA Series

AC/DCregulatedsingle-output

The Power Factor Corrected Modules are the perfect front ends for your universal AC single or 3-phase input to DC output applications. The standard 4.6″ x 2.5″ x 0.5″ full brick or 2.5″ x 2.3″ x 0.5″ half brick footprint is one of the smallest on the market today in this power range. Providing a 365V regulated DC output, it can be used as a front end for PICO’s FD/MD/LFD/LMD/LPD/ PD/HPD series of DC-DC converters to step down further ranging from 3.3V to 350V. Many laser and motor applications can use the 365V output directly. Features Up to 0.99 Power Factor Meets EN/IEC 610000-3-2 Up to 2kW output power in a full brick size Non-isolated & Regulated 365V output Operating Frequency sync feature (HPHA1/HPHA2) Enable DC/DC delay turn on feature (HPHA1/HPHA2) Fixed operating frequency Compatible with other Pico DC-DC converters providing isolated for 3.3 to 350V outputs Options Expanded operating temp: -40°C to +85°C Select screening per MIL-STD-883: Stabilization Bake: Ref. Method 1008 Temperature Cycle: Ref. Method 1010 Burn-In: Ref. Method 1015 Special Input Voltage, Output Voltage, or Output Power
