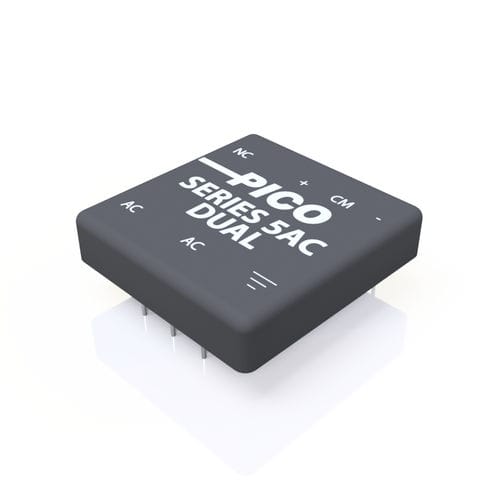

Printed circuit board power supply 5AC Series
encapsulatedAC/DCsingle-output

Printed circuit board power supply - 5AC Series - Pico Electronics - encapsulated / AC/DC / single-output
Printed circuit board power supply - 5AC Series - Pico Electronics - encapsulated / AC/DC / single-output
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Mounting / format
for printed circuit boards, encapsulated
Type
AC/DC
Output
single-output, dual-output
Technology
switching
Protection
with short-circuit protection
Other characteristics
isolated, miniature, low-profile
Input voltage

115 V, 220 V

Max.: 240 V

Min.: 90 V

Output voltage

5 V, 12 V, 15 V, 24 V

Current

Max.: 1,000 mA

Min.: 167 mA

Power

2.5 W, 5 W

Description

The 5AC series is a switching AC-DC power supply available in a low profile 0.500″ height and in single and dual outputs. They offer excellent line and load regulation and is continuously protected against short circuits. The highly reliable module is capable of up to 5W power in a wide ambient temperature range -25ºC to +70ºC. These modules are the perfect design choice for your most stringent industrial applications. Features Single, dual and triple outputs Low profile size – 2.3″ x 2.2″ x 0.5″ Through hole mounting Continuous short-circuit protection Two input voltage ranges Fixed operating frequency No external components required Options Expanded operating temp: -55°C to +85°C Select screening per MIL-STD-883: Stabilization Bake: Ref. Method 1008 Temperature Cycle: Ref. Method 1010 Burn-In: Ref. Method 1015 Special Input Voltage, Output Voltage, or Output Power Low Isolation Capacitance

Catalogs

Series 5AC
Series 5AC
6 Pages
