Encapsulated power supply UAC & UACHV Series
AC/DCregulatedsingle-output

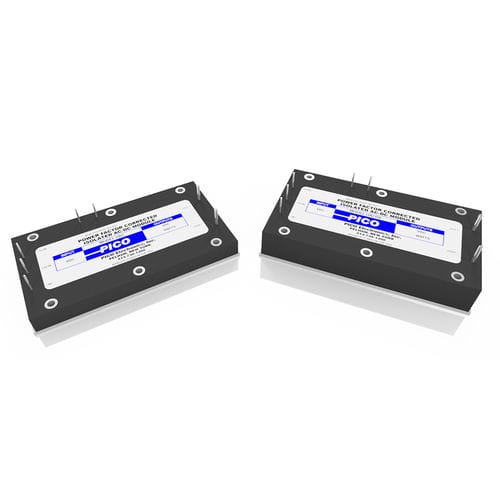

Encapsulated power supply - UAC & UACHV Series - Pico Electronics - AC/DC / regulated / single-output
Encapsulated power supply - UAC & UACHV Series - Pico Electronics - AC/DC / regulated / single-output
Encapsulated power supply - UAC & UACHV Series - Pico Electronics - AC/DC / regulated / single-output - image - 2
Encapsulated power supply - UAC & UACHV Series - Pico Electronics - AC/DC / regulated / single-output - image - 3
Add to favorites
Compare this product
Go to the Pico Electronics website for more information

Characteristics

Mounting / format
encapsulated
Type
AC/DC
Output
single-output, regulated
Technology
switching
Network
single-phase
Protection
with short-circuit protection, with overcurrent protection, with overheating protection
Other characteristics
compact, low-profile, with power factor correction, galvanically-isolated
Input voltage

Max.: 250 V

Min.: 85 V

Output voltage

Max.: 300 V

Min.: 5 V

Current

Max.: 20 A

Min.: 0.83 A

Power

Max.: 250 W

100 W, 150 W, 200 W, 250 W

Min.: 100 W

Description

The UAC series are isolated AC to DC power supplies with integrated power factor corrections. The low profile 4.6″ x 2.5″ x 0.5″ full brick can power up to 250W. Output voltage models ranges from 5V to 300V. The combination of front end PFC module and isolated low voltage output saves space – one module instead of two modules. Features 0.99 Power Factor Wide input voltage range Meets EN/IEC 610000-3-2 Up to 250W output power in a full brick size Input/output isolation Regulated 5V to 300V output models Fixed operating frequency Low 0.5″ height Options Expanded operating temp: -40°C to +85°C Select screening per MIL-STD-883: Stabilization Bake: Ref. Method 1008 Temperature Cycle: Ref. Method 1010 Burn-In: Ref. Method 1015 Special Input Voltage, Output Voltage, or Output Power 360-800Hz input frequency
