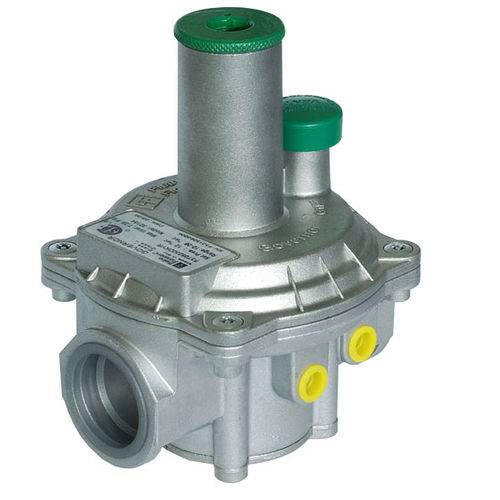

Gas pressure regulator

diaphragmspringsingle-stage

GAS GOVERNORS Gas governors with filter CSA design certified Z21.80/ CSA 6.22 Class I Line Pressure Regulator for 2 psig inlet pressure, outlet pressure range of 2 inches w.c. to ½ PSIG. The GOVERNOR allows for vent limited*, multi-position installation, and positive dead-end lockup for ½ through 4". The GAS GOVERNOR also features double diaphragm, integral vent limiter with balanced valve design to provide increased capacity and accuracy. The GOVERNOR is suitable for indoor and outdoor installation. The GOVERNOR is also certified ANSI Z21.18 (appliance regulators). CSA design certified Z21.80/ CSA 6.22 Class I Line Pressure Regulator with Over Pressure Protection (OPD) for 5 psig inlet pressure, outlet pressure range of 2 inches w.c. to ½ PSIG. The GAS GOVERNOR allows for vent limited*, multi-position installation and positive dead-end lockup for ½ through 2". The GAS GOVERNOR also features double diaphragm, integral vent limiter with balanced valve design to provide increased capacity and accuracy. The GAS GOVERNOR is suitable for indoor and outdoor installation. GAS GOVERNOR non-certified models are available from ½" through 4" pipe size, up to 7 psig inlet pressure and 2 psig outlet pressures. Integral slam-shut valves and filters are available. The GAS GOVERNOR is suitable for indoor and outdoor installation. *Where local codes allow
