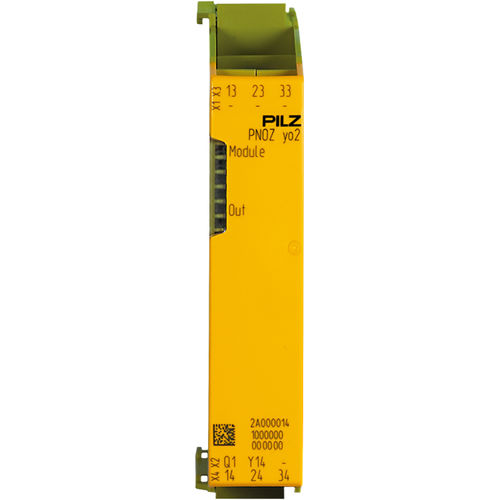

I/O expansion module PNOZ yo2 3NO

for safety relaymodular

Expansion module of the modular safety relay myPNOZ, outputs: 3 n/o safe instantaneous switching relay contacts, 1 signal output in semiconductor technology, width: 17.5mm General data Approval - CE CCC UKCA cULus Listed TÜV EAC (Eurasian) Technical data Electrical data Purpose of UINT1 - Module supply Source of internal voltage - Via head module Voltage type of UINT1 - DC Permitted loads - Resistive Inductive Relay outputs Utilisation cat. AC/DC1 stand. - EN 60947-4-1 Voltage AC1 safety cont. - 240 V Max. current AC1 safety cont. - 6 A Voltage DC1 safety cont. - 24 V Max. current DC1 safety cont. - 6 A Utilisation cat. AC15/DC13sta. - EN 60947-5-1 Voltage AC15 safety cont. - 230 V Max. current AC15 safety cont. - 5 A Voltage DC13 safety cont. - 24 V Safety contacts: AC at UL - Safety contacts: pilot duty - B300, R300 Pilot duty R300 to UL - 24 V DC Relay contact material - AgCuNi Addit. contact details relay - + 0.2 µm Au Pot. isolation relay outputs - Yes Environmental data Ambient temperature standard - EN 60068-2-14 Ambient temperature - -10 °C Storage temperature standard - EN 60068-2-1/-2 Climatic suitability standard - EN 60068-2-78 Condensation permitted? - Not permitted EMC to standard ... - EN 60947-5-1 EN 61000-6-2 EN 61000-6-4 EN 61326-3-1
