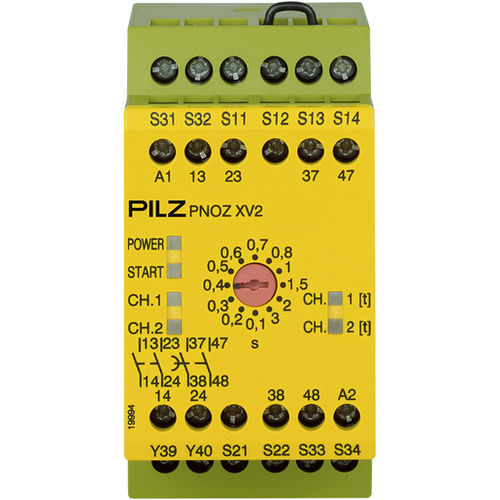

Emergency stop safety relay PNOZ XV2panel-mount24VDCtime delay
Add to favorites
Compare this product
Characteristics
- Applications
- emergency stop
- Mounting
- panel-mount
- Supply voltage
- 24VDC
- Other characteristics
- time delay
- Tripping current
5 A, 8 A
- Trigger voltage
24 V, 240 V
Description
Safety relay (standalone), inputs: 1/2-channel wiring with/without detection of shorts across contacts, outputs: 2 N/O, 2 N/Ot-d, UB = 24 V DC, width: 45 mm, screw terminals integrated, E-STOP monitoring, safety gates, with 2 delay-on de-energisation contacts, delay time can be set in 12 levels from 0.1 - 3 s.
General data
Approval - CCC
CE
cULus Listed
EAC (Eurasian)
TÜV
Technical data
Electrical data
Type of supply voltage U1 - DC
Power consumption DC - 4.5 W
Inputs
Number of inputs - 2
Semiconductor outputs
Number of semicond. outputs - 0
Relay outputs
Utilisation cat. AC/DC1 stand. - EN 60947-4-1
Utilisation cat. AC15/DC13sta. - EN 60947-5-1
Safety contacts: pilot duty - C300, R300
Relay contact material - AgSnO2
Addit. contact details relay - + 0.2 µm Au
