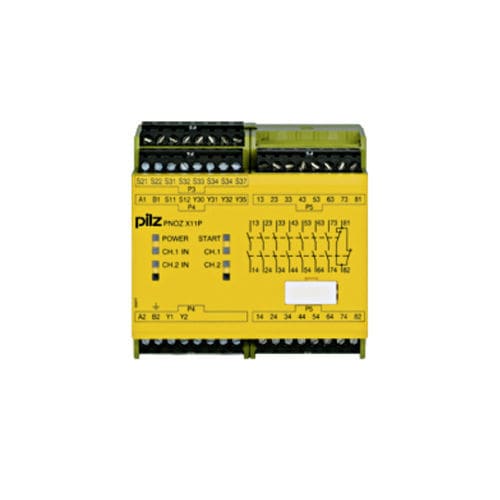

Emergency stop safety relay PNOZ X11Pdual-channelsingle-channel24VDC
Add to favorites
Compare this product
Characteristics
- Applications
- emergency stop
- Number of channels
- dual-channel, single-channel
- Supply voltage
- 24VDC, 230VAC, 240VAC
- Reset
- automatic reset, manual reset
- Tripping current
5 A, 8 A
- Trigger voltage
230 V, 240 V
Description
Safety relay (standalone), inputs: 1/2-channel wiring with/without detection of shorts across contacts, outputs: 7 N/O, 1 N/C,2 SC, automatic/manual/monitored start, start-up test UB 230 - 240 V AC/24 V DC, width: 90 mm, plug-in terminals of screw type, monitoring of E-STOP, safety gates, feedback loop.
General data
Approval - CCC
CE
cULus Listed
EAC (Eurasian)
TÜV
Technical data
Electrical data
Type of supply voltage U1 - AC
Type of supply voltage U2 - DC
Tolerance of U2 -
Inputs
Number of inputs - 2
Semiconductor outputs
Number of semicond. outputs - 2
Tolerance ext. volt. DC S/C - -20 %/+20 %
Utilisation cat. to EN 60947-1 - DC-12
Relay outputs
Utilisation cat. AC/DC1 stand. - EN 60947-4-1
Utilisation cat. AC15/DC13sta. - EN 60947-5-1
Safety contacts: AC at UL - 240 VAC G. P.
Safety contacts: pilot duty - B300, R300
Relay contact material - AgSnO2
Addit. contact details relay - + 0.2 µm Au
