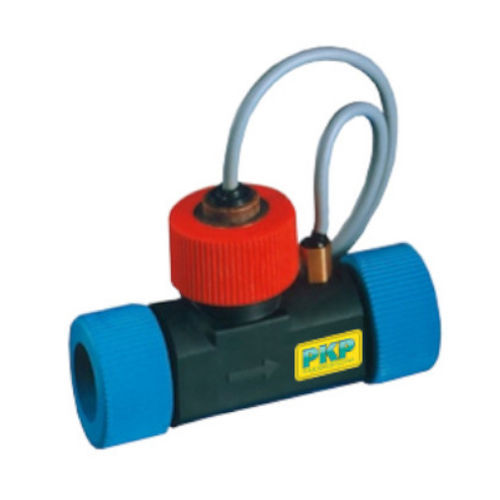

Turbine flow sensor DR08

volumefor liquids

The flow meters of the DR08 series operate according to the turbine wheel principle. The liquid flows into the turbine body and causes a rotor to rotate in proportion to the flow. Depending on the model, this rotation is converted into an output frequency by an inductive proximity sensor or a Hall sensor. One of the main features of the DR08 turbine flowmeters is the very low series scatter of identical devices. This eliminates the need for individual adjustment of the individual turbines to the respective downstream electronics, making the DR08 ideally suited for use in series applications Typical applications Due to their design, large measuring range and high measuring accuracy, the DR08 turbine flowmeters are suitable for applications in these areas: cooling water measurement medical technology plastics industry solar plant machine tools photo laboratory systems tapping and dosing systems cooling and heating applications heat quantity measurement for pipe sizes from 3/4" to 2" materials: PP, brass or stainless steel max. pressure: up to 300 bar max. temperature: up to 150 °C high accuracy no individual calibration necessary integrated temperature sensor optionally available analogue output, frequenzy divider or local electronic indication and control unit optionally ranges: 2-40 l/min, 4-160 l/min and 0.4-25 m³/h water
