Paddle flowmeter DK10

for liquidsaluminumstainless steel

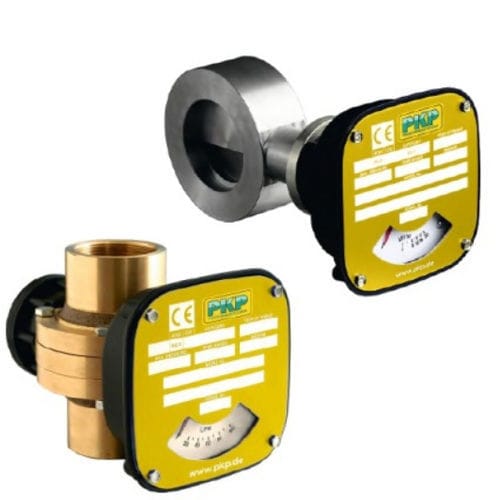

The DK10 series flap flow meter comprises a spring-loaded flap mounted in a hemispherical chamber. The flap is deflec­ted by the flow in the line. The deflection is directly propor­tional to the flow rate. The movement of the flap is transmitted via a shaft – that is sealed off from the process – to a mech­anical pointer and the flow is displayed on a scale. One or two microswitches for flow monitoring or an analogue output module can be installed in the display enclosure (optional). Each flow meter is calibrated for the liquid being monitored based on customer specifications. The devices are available with G or NPT threads for 1/4" to 2" pipes and as a wafer for mounting between two DIN or ANSI flanges on DN 80 (3") to DN 200 (8") pipe sizes. Typical applications Due to their robust design, their resistance to dirty or contam­inated liquids and the variety of material combinations avail­able, the DK10 flap flow meters are suitable for use as control and monitoring devices for practically all process liquids. robust design, for any flow direction insensitive to dirty / contaminated media process connection: female thread or wafer (for mounting between two flanges) with optional analog output and / or limit switches for medium viscosities up to 600 cSt
