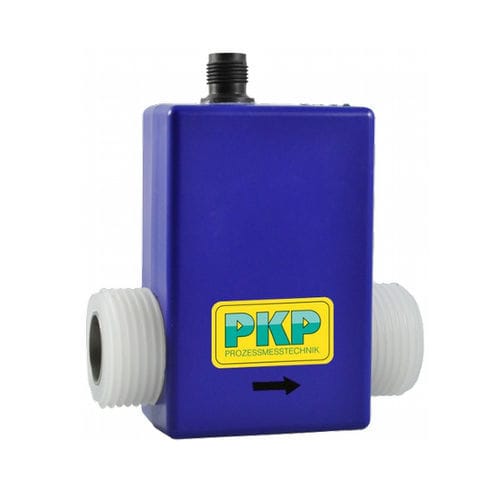

Magnetic flowmeter DM01A

inductiveelectromagneticfor liquids

The electromagnetic compact flow meter DM01A works with­out moving parts thanks to the electromagnetic measuring principle. It is specially designed for low flow rates and tight installation conditions. Measuring ranges from 0,05 l/min to 250 l/min are available, as are process connections from 3/8” to 1 1/4”. A push-pull frequency output is available as an out­put signal. An analogue 4...20 mA or 0,5...10 V signal is also available as an option. Typical applications no moving parts, therefore the DM01A is maintenance and wear free. no components protrude into the measuring tube, thus the pressure loss is kept very small and is not larger than with a pipeline of the same length. the measuring is independent of temperature, viscosity, concentration and pressure under normal operating con­ditions. the very wide measuring span of 1:50 makes the DM01A universally applicable. foreign bodies carried along in the flow and viscous media interspersed with solids are also unproblematic. due to the compact design and the favourable price the DM01A is suitable for serial applications.
