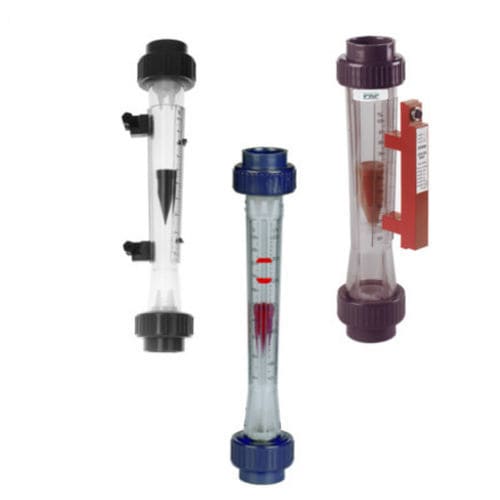

Variable-area flowmeter DS15

volumefor liquidsfor gas

The flowmeters model DS15 works according to the proven variable area principle. The float is moved upward by the flow­ing medium and its upper edge indicates the flow rate by means of a scale affixed onto the measuring tube. By using a float with an integrated magnet optional alarm contacts or an analogue output transmitter may be operated. All flowmeters have a male thread on the measuring tube and are additionally equipped with PVC glue-in connectors. Also possible are connectors with female thread (BSP) made of PVC, PP, PVDF or stainless steel. Typical applications The variety of different materials used and the simple to exchange measuring scales make these meters universally suitable for most liquid and gaseous media, also suitable for very aggressive media. Main applications are in the water treatment industry, in waste water applications, chemical and food industry and many more. for low viscous liquids or gases for pipe sizes from 3/8" to 2 1/2" measuring tubes made of PVC, PA, PSU, or PVDF with up to 2 switch contacts or analogue transmitter
