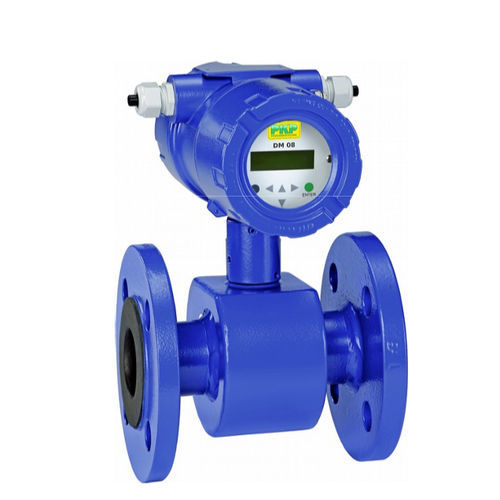

Inductive flowmeter DM08

magneticvolumefor water

The magnetic inductive flowmeter operates without moving parts. It is maintenance free and there is because of a free tube cross section practically no pressure drop. Measuring ranges from 0,72 until 1131 m³/h with flange connections DN 32 until DN 200 are available. The device comes as standard version with a dual digital dis­play with a simple menu driven operation/programming (e.g. measuring range, pulse rate, low flow cut off). For example the flow volume, device status, limit values, flow direction, empty pipe detection can be displayed. The display electronic operates with a 16 bit microcontroller by what a fast reaction time <100 ms can be achieved. In addition to the frequency and analogue outputs, two alarm outputs are also available as output signals. The flowmeters are equipped with 3 indepen­dent totalisers to count partial and total amounts. Typical applications Because of the full bore and the various lining- and electrode material the flowmeter DM08 can be used for almost all media with the indicated minimum conductivity of 50 µS/cm. Viscos­ity, impurities in the media or density fluctuations have no impact for the measurement. Particularly for the following sec­tors the DM08 can be used: water and waste water mining, cement and mineral material cellulose- and paper industry acids and lyes agriculture energy industry and public utility paint industry
