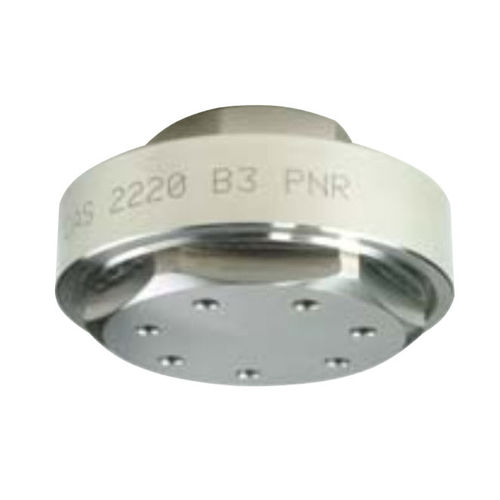

Spray nozzle CAS seriescoolingfor liquidsmultidrop
Add to favorites
Compare this product
Characteristics
- Function
- spray, cooling
- Fluid
- for liquids
- Stream
- multidrop
- Material
- stainless steel, brass
- Applications
- chemical, firefighting
- Spray angle
- 70°
- Other characteristics
- female, hydraulic
- Orifice diameter
Max.: 5 mm
(0.197 in)Min.: 0.5 mm
(0.02 in)- Flow
Max.: 447 l/min
(118.08 us gal/min)Min.: 0.74 l/min
(0.2 us gal/min)- Pressure
Max.: 10 bar
(145 psi)Min.: 0.7 bar
(10.2 psi)
Description
CAS full cone nozzle has seven orifices, large spray capacities and produces very fine droplets using hydraulic pressure only. As the droplets size, among other factors, also depends on the nozzle size, these multi-orifice nozzles produce a finer spray than a standard full cone single-orifice nozzle working at the same pressure and delivering the same quantity of liquid. The surely are the best choice when fine mist effect and large spray capacity are required.
Catalogs
No catalogs are available for this product.
See all of PNR Italia‘s catalogsOther PNR Italia products
Full cone nozzles
