Liquid nozzle CH seriessprayfull-conestainless steel
Add to favorites
Compare this product
Characteristics
- Fluid
- for liquids
- Function
- spray
- Stream
- full-cone
- Material
- stainless steel, brass
- Applications
- firefighting
- Spray angle
- 360°
- Other characteristics
- female
- Orifice diameter
Min.: 0.125 in
Max.: 0.75 in
- Flow
Min.: 4.77 l/min
(1.26 us gal/min)Max.: 878 l/min
(231.94 us gal/min)- Pressure
Min.: 1 bar
(14.5 psi)Max.: 10 bar
(145 psi)
Description

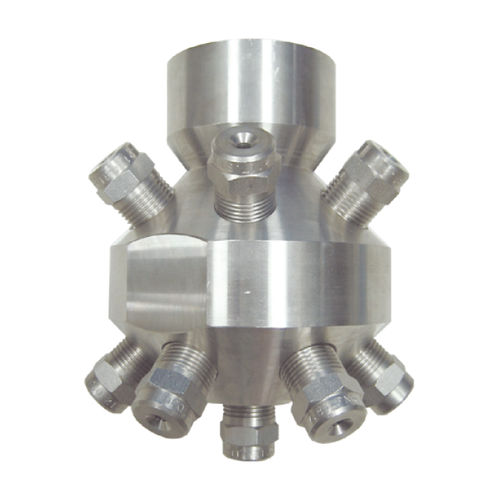

CH series includes large and small capacities hollow cone cluster nozzles. They make a cluster spray pattern and are available in 7 and 13 nozzles versions. Several nozzles are assembled on one nipple with small volume and wide spray coverage. The droplets size is 1/3-1/2 compared to those produced by a single nozzle with same capacity. An added value to CH full cone nozzle is their wide spray range.
