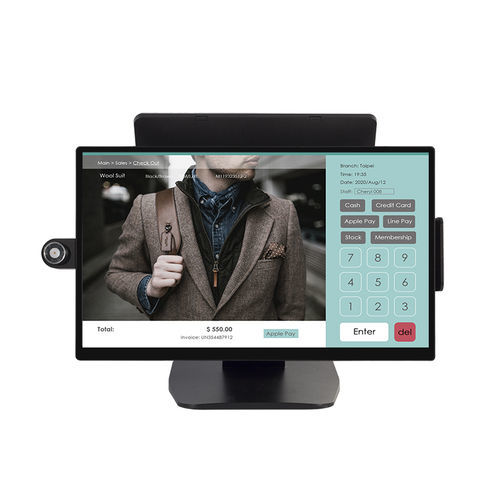

Projected capacitive touchscreen terminal PT56B

table-top1920 x 1080Intel® Celeron®

Overview
PT Series POS Systems, respond to market demand. The PT56B presents a stylish and modern POS system with cutting-edge mechanical design and hidden cable management, delivering a space-saving solution. The PT56B guarantees stability and high performance to enhance customer experience. Seamless integration of various peripherals such as MSR, Second Display, and Customer Display to meet project requirements.

Key Features

• Supports CPUs from Celeron to Intel 12th Gen. Core i3/i5
• 4.8mm slimmest bezel in the present market
• Easy service cover for Memory Module & M.2 SSD
• Quick release of dual IO covers for easy access & peripherals installation
• Optional IO module for Power USB

Design & Display
Modern slim bezel design widescreen display that merges style with practicality. The widescreen format allows System Integrators to design menu layouts that are visually engaging and user-friendly, catering to diverse needs across retail, hospitality, and industrial applications.

Performance & Integration

• Reliable Intel Processing: Intel Celeron, 12th Gen. Core i3/i5
• Front Panel IP54 (Ingress Protection) dust and waterproof protection
• Robust stand for perfect tilt adjustment
• Multiple mount options: Wall, Pole & Stand Mount Configurations

Power & Connectivity
The PT56B supports P-USB Powered equipment, eliminating the need for external power supply adapters to power USB peripherals. It simplifies cable management and maintenance, allowing powered USB devices such as receipt printers, barcode scanners, and other capture devices to connect without additional power adapters.

SoftPOS Payment Support

• 10.1” 2nd display for interactive payment
• Supports Windows-compatible SoftPOS with NFC payment
• Simplifies checkout and enhances experience

Technical Specifications

• Main Board
  PT56 (PE24) / PT56 (PE26)
• Processor
  PT56 (PE24): Intel® Celeron® Processor
  PT56 (PE26): Intel® Alder Lake-P Platform, Core i5, Core i3
• Chipset: CPU Integrated
• System Memory
  PT56 (PE24): 1 x SO-DIMM DDR4 slot, 4GB RAM as standard, Max. 16GB
  PT56 (PE26): 1 x 8GB DDR5 SO-DIMM memory (Max. 32GB)
• TPM: Intel F/W
• Intel AMT: N/A (i5 CPU Only for PE26)
• Display & Touch
  LCD Size: 15.6″ 16:9 TFT LCD (LED backlight)
  Brightness: 350nits
  Resolution: 1920 x 1080 (16:9)
  Touch: True Flat Projected Capacitive Technology
• Storage: 1 x M.2 PCIE Gen 3
• Panel I/O
  LAN Port: 1 x Gigabit Ethernet by RJ-45
  USB Port: 4 x USB 2.0, 3 x USB 3.1
  COM Port: 2 x COM (COM 1/2: RG48 Support DC to 5/12v by BIOS Setting, Default Setting is 0v)
  Cash Drawer: 1 x RJ11 (Support DC+12v or +24v (default)), supports 2 cash drawers
  Type C: 1 x Type C
  Speaker: HD Audio, 2W Speaker x 2
  Power Switch: 1 x power on/off button
  DC Input: 1 x Mini Din 4P (DC+19v only)
• OS Support: Windows 10 (64bit), Windows 11 (64bit) (Option), Linux
• Power Adapter (External Adapter)
  PT56 (PE24): Voltage: +19VDC, Std. 65 watt
  PT56 (PE26): Voltage: +19VDC, Std. 90 watt
• Compliance: CE, FCC, LVD, RoHS
• Material: Main Unit: Plastic
• Color: Main Unit: Black
• Dimension (W x H x D mm): 359.8 x 261.2 x 178 mm
• Environmental Conditions
  Operating: 0°C ~ 40°C, 10% ~ 90% RH, non-condensing
  Storage: -20°C ~ 60°C, 10% ~ 90% RH, non-condensing
• Optional Accessories
  MSR: ISO 3-Tracks Slim MSR USB Type
  ibutton: Dallas Key Reader, USB Type
  RFID: 13.56Mhz USB Type
  Fingerprint: DigitalPersona U.are.U 4500 Module, USB Type
  Scanner: 2D scanner, USB Type
  2nd Display 10.1″: 1280 x 800 (16:10 wide screen) USB Type, Non Touch, Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa
  2nd Display 15.6″: 1920 x 1080 (16:9 Widescreen), PCAP Touch (*Project Based)
  LCM: 2×20 LCM, USB Type
• Packaging Carton: L395 x 295 x H489 mm

Caractéristiques / Spécifications techniques

• Processor: Intel® Celeron® / Intel® Alder Lake-P Platform (Core i3/i5)
• Memory: DDR4/DDR5 SO-DIMM, up to 32GB
• Display: 15.6″ 16:9 TFT LCD, 350nits, 1920 x 1080, Projected Capacitive Touch
• Storage: 1 x M.2 PCIE Gen 3
• Connectivity: 1 x Gigabit Ethernet, 4 x USB 2.0, 3 x USB 3.1, 2 x COM, 1 x RJ11, 1 x Type C
• Audio: HD Audio, 2W Speaker x 2
• Power: +19VDC, 65W/90W external adapter
• Compliance: CE, FCC, LVD, RoHS
• Material: Plastic
• Color: Black
• Dimensions: 359.8 x 261.2 x 178 mm
• Operating Temp: 0°C ~ 40°C
• Storage Temp: -20°C ~ 60°C
• Optional: MSR, ibutton, RFID, Fingerprint, 2D scanner, 2nd Display (10.1”/15.6”), LCM
