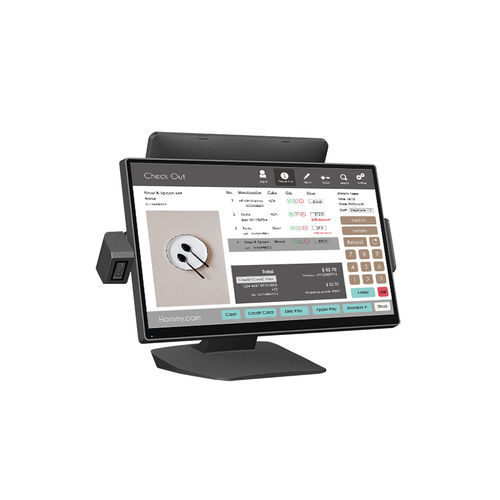

Projected capacitive touchscreen terminal PT58B

table-top1920 x 1080Intel® Celeron®

Product Overview
PT Series POS Systems, respond to market demand. PT58B Redefining POS Excellence with Cutting-Edge Design.

• Full range of CPUs from Celeron to Intel 12th Gen. Core i3/i5
• Aluminum die-casting structure for strong & stable operation.
• Easy access/service M.2 SSD cover.
• Rubber gasket frame sealing bezel design for IP-65 resistance.
• Comprehensive dual-side mounting support of peripherals: MSR/Fingerprint/iButton/RFID/2D scanner readers.
• Support 15.6″ 16:9 or 10.1″ 2nd display, & 2×20 LCM.
• Innovative heat-dissipation fan-less operation design.
• 4.8mm Super Slim Edge Bezel.
• VESA 75/100 for Pole/Wall Mounting

Retail Ready Performance
With its contemporary and ultra-slim bezel design, the PT58B showcases a striking widescreen display that seamlessly blends style and functionality. The sleek Full HD widescreen format empowers System Integrators to craft intricate interfaces tailored to the unique requirements of various applications in the retail, hospitality, and industrial sectors. Furthermore, the PT58B effortlessly integrates peripherals like MSR, Second Display, and Customer Display, ensuring seamless compatibility with diverse project needs.
Deliver the Power to Perform

• Intel Celeron, 12th Gen. Core i3/i5
• Reliable Intel Processing

IP65 Ingress Spill Proof
Front Panel IP65 (Ingress Protection) dust and waterproof protection
Robust Stand
Stand for the perfect tilt adjustment
Multiple Mount Options
Wall, Pole & Stand Mount Configurations
Stability & Performance
System Stability for Demanding Workloads
The PT58B POS system presents an innovative design, incorporating exceptional mechanical engineering and a remarkable 12% improvement in heat dissipation. These advancements significantly enhance the Mean Time Between Failures (MTBF) and overall system stability, guaranteeing uninterrupted operations even during demanding workloads.
SoftPOS Payment Support

• 10.1” 2nd display for interactive payment.
• Supports Windows-compatible SoftPOS with NFC payment.
• Simplifies checkout and enhances experience.

Specification
Main Board

PT58 (PE24) / PT58 (PE26)

Processor
PT58 (PE24): Intel® Celeron® Processor
PT58 (PE26): Intel® Alder Lake-P Platform, Core i5, Core i3

Chipset
CPU Integrated

System Memory
PT58 (PE24): 1 x SO-DIMM DDR4 slot, 4GB RAM as standard. Max. memory support up to 16GB.
PT58 (PE26): 1 x 8GB DDR5 SO-DIMM memory (Max. support up to 32GB)

TPM
Intel F/W

Intel AMT
PT58 (PE24): N/A
PT58 (PE26): i5 CPU Only

Display & Touch
LCD Size: 15.6″ 16:9 TFT LCD
Brightness: 250nits
Resolution: 1920 x 1080, Full HD
Touch: True Flat Projected Capacitive Technology

Storage
1 x 128GB M.2 SSD as standard

Panel I/O
LAN Port: 1 x Gigabit Ethernet by RJ-45
USB Port: 3 x USB 2.0, 3 x USB 3.1
COM Port: 2 x RJ48 (Support DC+0/5/12v by BIOS setting, default setting is 0v)
Cash Drawer: 1 x RJ11 (Support DC+12v or +24v (default)) port, supports 2 cash drawers
Type C: 1 x Type C
Speaker: HD Audio, 2W Speaker x 2
Power Switch: 1 x power on/off button
DC Input: 1 x Mini Din 4P (DC+19v only)

OS Support
Windows 10 (64bit) | Windows 11 (64bit) (Option) | Linux

Power Adapter (External Adapter)
PT58 (PE24): Voltage:+19VDC, Std. 65 watt
PT58 (PE26): Voltage:+19VDC, Std. 90 watt

Compliance
Certifications: CE, FCC, LVD, RoHS
Material: Main Unit: Plastic
Color: Main Unit: Black
Dimension (W x H x D mm): 361.6 x 300.5 x 191.9 mm

Environmental Conditions
Operating: 0°C ~ 40°C, 10% ~ 90% RH, non-condensing
Storage: -20°C ~ 60°C, 10% ~ 90% RH, non-condensing

Optional Accessories
MSR: ISO 3-Tracks Slim MSR USB Type
ibutton: Dallas Key Reader, USB Type
RFID: 13.56Mhz USB Type
Fingerprint: DigitalPersona U.are.U 4500 Module, USB Type
Scanner: 2D scanner, USB Type
2nd Display 10.1″: 10.1” Resolution 1280 x 800 (16:10 wide screen) USB Type, Non Touch; Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa
2nd Display 15.6″: 15.6″ Resolution 1920 x 1080 (16:9 Widescreen), PCAP Touch (*Project Based)
LCM: 2×20 LCM, USB Type
Packaging Carton: L395 x 295 x H489 mm

Characteristics / Technical Specifications

• Processor: Intel® Celeron® or Intel® Alder Lake-P Platform (Core i3/i5)
• Memory: Up to 32GB DDR5 (PE26), up to 16GB DDR4 (PE24)
• Display: 15.6″ Full HD, 1920 x 1080, Projected Capacitive Touch
• Storage: 128GB M.2 SSD
• Ports: 3 x USB 2.0, 3 x USB 3.1, 2 x RJ48 COM, 1 x RJ11 Cash Drawer, 1 x Type C, 1 x Gigabit Ethernet
• Audio: 2 x 2W speakers
• Power: 19VDC, 65W or 90W adapter
• Certifications: CE, FCC, LVD, RoHS
• Dimensions: 361.6 x 300.5 x 191.9 mm
• Operating Temp: 0°C ~ 40°C
• Optional: MSR, iButton, RFID, Fingerprint, 2D Scanner, 2nd Display (10.1” or 15.6”), LCM
