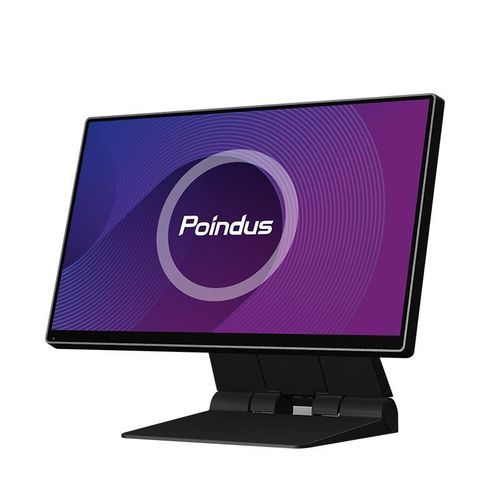

Projected capacitive touchscreen terminal PT58A

table-top1920 x 1080Intel® Celeron®

Product Overview
All In One PT Series POS Systems, respond to market demand. PT58A Redefining POS Excellence with Cutting-Edge Design.

• Full range of CPUs from Celeron to Intel 12th Gen. Core i3/i5
• Aluminum die-casting structure for strong & stable operation.
• Easy access/service M.2 SSD cover.
• Rubber gasket frame sealing bezel design for IP-65 resistance.
• Comprehensive dual-side mounting support of peripherals: MSR/Fingerprint/iButton/RFID/2D scanner readers.
• Support 15.6″ 16:9 or 10.1″ 2nd display, & 2×20 LCM.
• Innovative heat-dissipation fan-less operation design.
• 4.8mm Super Slim Edge Bezel.
• VESA 75/100 for Pole/Wall Mounting

Retail Ready Performance
Full HD Display Optimized for Modern Retail
With its modern and ultra-slim bezel design, the PT58A boasts a stunning widescreen display that seamlessly integrates style and functionality. The sleek Full HD widescreen format allows System Integrators to create intricate interfaces tailored to the specific needs of diverse applications in the retail, hospitality, and industrial sectors. The PT58A offers effortless integration of peripherals such as MSR, Second Display, and Customer Display, effectively meeting all project requirements.
Deliver the Power to Perform

• Reliable Intel Processing: Intel Celeron, 12th Gen. Core i3/i5
• Front Panel IP65 (Ingress Protection) dust and waterproof protection
• Robust Stand for the perfect tilt adjustment
• Multiple Mount Options: Wall, Pole & Stand Mount Configurations

Stability & Performance
System Stability for Demanding Workloads
The PT58A POS system showcases a cutting-edge design, incorporating exceptional mechanical engineering and a groundbreaking heat-dissipation improvement of up to 12%. These advancements significantly enhance the Mean Time Between Failures (MTBF) and overall stability of the system, ensuring uninterrupted operations even under demanding workloads.
SoftPOS Payment Support
Empowering Transactions with Smart 2nd Display

• 10.1” 2nd display for interactive payment.
• Supports Windows-compatible SoftPOS with NFC payment.
• Simplifies checkout and enhances experience.

Specification
Main Board

PT58 (PE24) / PT58 (PE26)

Processor
PT58 (PE24): Intel® Celeron® Processor
PT58 (PE26): Intel® Alder Lake-P Platform, Core i5, Core i3

Chipset
CPU Integrated

System Memory
PT58 (PE24): 1 x SO-DIMM DDR4 slot, 4GB RAM as standard. Max. memory support up to 16GB.
PT58 (PE26): 1 x 8GB DDR5 SO-DIMM memory (Max.support up to 32GB)

TPM
Intel F/W

Intel AMT
PT58 (PE24): N/A
PT58 (PE26): i5 CPU Only

Display & Touch
LCD Size: 15.6″ 16:9 TFT LCD
Brightness: 250nits
Resolution: 1920 x 1080, Full HD
Touch: True Flat Projected Capacitive Technology

Storage
1 x 128GB M.2 SSD as standard

Panel I/O
LAN Port: 1 x Gigabit Ethernet by RJ-45
USB Port: 3 x USB 2.0, 3 x USB 3.1
COM Port: 2 x RJ48 (Support DC+0/5/12v by BIOS setting, default setting is 0v)
Cash Drawer: 1 x RJ11 (Support DC+12v or +24v (default)) port, supports 2 cash drawers
Type C: 1 x Type C
Speaker: HD Audio, 2W Speaker x 2
Power Switch: 1 x power on/off button
DC Input: 1 x Mini Din 4P (DC+19v only)

OS Support
Windows 10 (64bit) | Windows 11 (64bit) (Option) | Linux

Power Adapter (External Adapter)
PT58 (PE24): Voltage:+19VDC, Std. 65 watt
PT58 (PE26): Voltage:+19VDC, Std. 90 watt

Compliance
Certifications: CE, FCC, LVD, RoHS
Material: Main Unit: Plastic
Color: Main Unit: Black
Dimension (W x H x D mm): 361.6 x 300.5 x 191.9 mm

Environmental Conditions
Operating: 0°C ~ 40°C, 10% ~ 90% RH, non-condensing
Storage: -20°C ~ 60°C, 10% ~ 90% RH, non-condensing

Optional Accessories
MSR: ISO 3-Tracks Slim MSR USB Type
ibutton: Dallas Key Reader, USB Type
RFID: 13.56Mhz USB Type
Fingerprint: DigitalPersona U.are.U 4500 Module, USB Type
Scanner: 2D scanner, USB Type
2nd Display 10.1″: 10.1” Resolution 1280 x 800 (16:10 wide screen) USB Type, Non Touch; Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa
2nd Display 15.6″: 15.6″ Resolution 1920 x 1080 (16:9 Widescreen), PCAP Touch (*Project Based)
LCM: 2×20 LCM, USB Type
Packaging Carton: L395 x 295 x H489 mm

Characteristics / Technical Specifications

• Processor: Intel® Celeron® or Intel® Alder Lake-P Platform (Core i3/i5)
• Memory: DDR4/DDR5 SO-DIMM, up to 32GB
• Display: 15.6″ 16:9 TFT LCD, 1920 x 1080 Full HD, 250nits
• Touch: True Flat Projected Capacitive
• Storage: 128GB M.2 SSD
• Ports: 3 x USB 2.0, 3 x USB 3.1, 2 x RJ48 COM, 1 x RJ11 Cash Drawer, 1 x Type C, 1 x Gigabit Ethernet
• Audio: 2 x 2W Speakers
• Power: External Adapter, 19VDC, 65W/90W
• Certifications: CE, FCC, LVD, RoHS
• Material: Plastic, Color: Black
• Dimensions: 361.6 x 300.5 x 191.9 mm
• Operating Temp: 0°C ~ 40°C
• Optional: MSR, iButton, RFID, Fingerprint, 2D Scanner, 2nd Display (10.1”/15.6”), LCM
