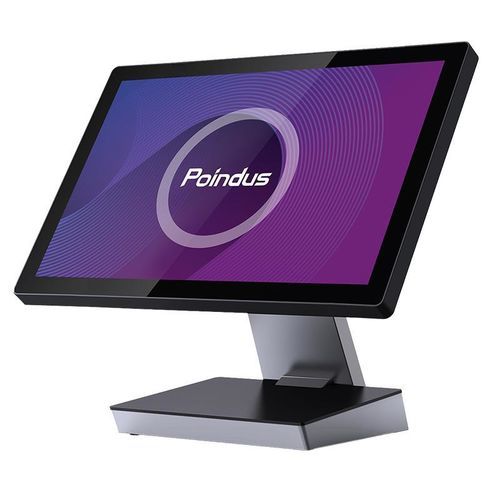

Multitouch screen terminal PT60

projected capacitive touchscreentable-top1920 x 1080

Product Overview
The PT60 is a powerful all-in-one POS solution, designed to meet the rigorous demands of retail and hospitality. With its modern dual-hinge design, compact footprint and hidden cable management, the PT60 optimizes counter space delivering a clean and organized checkout. The durable aluminum body ensures robust functionality. Equipped with an Intel Alder Lake-N N97 processor and energy-efficient performance, the PT60 ensures reliable operation in demanding environments.

• Compact footprint, space-saving in storage and in delivery.
• Slim and stylish, ultra-thin bezel, aluminum body. 15.6” touch screen.
• Integrated 11.6″ 2nd screen with optional touch screen.
• Suitable for multiple scenarios: retail, hospitality, speciality and more.
• High performance Intel N97 CPU.

Key Features

• Reliable Intel Celeron® N97 Quad Core Performance
• Front Panel IP65 (Ingress Protection) - Spill Proof
• Dual Hinged Stand for the perfect tilt adjustment
• Multiple Mount Options: Wall, Pole & Stand Mount Configurations

Value POS Solution
Your POS system plays a critical role in streamlining operations and enhancing customer satisfaction. The PT60 is designed as an affordable yet powerful solution tailored to the needs of retail and hospitality businesses. It boosts workflow efficiency, empowers your team to work productively, and helps you meet customer demands faster. Combining robust performance with cost-effectiveness, the PT60 is a smart investment that adds real value to your business.
Peripherals
Our PT Series supports a complete range of retail ready peripherals.

• MSR: 3-Tracks MSR
• MSR + RFID + iButton reader
• MSR + RFID + Fingerprint reader

Technical Specifications
PT60

Main Board
CPU: Intel© Alder Lake-N N97 up to 3.6 GHz
Memory / RAM: DDR4 8GB

Display & Touch
Main Display: 15.6″ 16:9 LCD (1920×1080), 300 nits, Pcap multi-touch screen

Storage
SSD: SSD 128GB

Panel I/O
LAN Port: 1 x RJ45 LAN 10/100/1000M
USB Port: 2 x USB 3.0, 4 x USB 2.0 (2 on the side of housing)
COM Port: 2 x RS232 COM DB9 ports
Cash Drawer: 1 x RJ11 cash drawer port
VGA: 1 x VGA DB15 port
Audio: 1 x HP-Jack (Mic-IN/Line OUT), Speaker: 2Wx2
DC Input: 1 x DC IN

OS Support
Support Windows 10 / Windows 11 / Linux

Power Adapter (External Adapter)
DC+12V/5A 60W Adaptor

Appearance
Aluminum die-casting + plastic, Color in technology black

Peripherals (Optional)
MSR: 3-Tracks MSR
iButton: iButton Reader
Combo: MSR + RFID + iButton reader, MSR + RFID + Fingerprint reader
2nd Display 11.6″: Second Display: 11.6″ 1366×768 Display; By Project Request: 11.6″ 2nd Display with Pcap touch, NFC reader or 2D reader
VFD: 2×20 VFD, USB Type
Mounting: Desktop, or Wall-mounted VESA 100×100

Environmental
Operating temperature 0°C ~ 40°C
Storage temperature -20°C ~ 60°C

Dimensions & Weight
Dimension (W x H x D mm): 380 x 339 x 188 mm
Weight: 6.6Kgs / 7.2Kgs

Certification
CE, FCC, RoHS

Characteristics / Technical Specifications

• CPU: Intel Alder Lake-N N97 up to 3.6 GHz
• Memory: DDR4 8GB
• Storage: SSD 128GB
• Main Display: 15.6″ 16:9 LCD (1920×1080), 300 nits, Pcap multi-touch
• 2nd Display: 11.6″ 1366×768 (optional, with touch/NFC/2D reader)
• LAN: 1 x RJ45 LAN 10/100/1000M
• USB: 2 x USB 3.0, 4 x USB 2.0
• COM: 2 x RS232 COM DB9
• Cash Drawer: 1 x RJ11
• VGA: 1 x DB15
• Audio: 1 x HP-Jack (Mic-IN/Line OUT), 2Wx2 speakers
• Power: DC+12V/5A 60W Adaptor
• Mounting: Desktop or VESA 100×100
• Operating Temp: 0°C ~ 40°C
• Dimensions: 380 x 339 x 188 mm
• Weight: 6.6Kgs / 7.2Kgs
• Certifications: CE, FCC, RoHS
