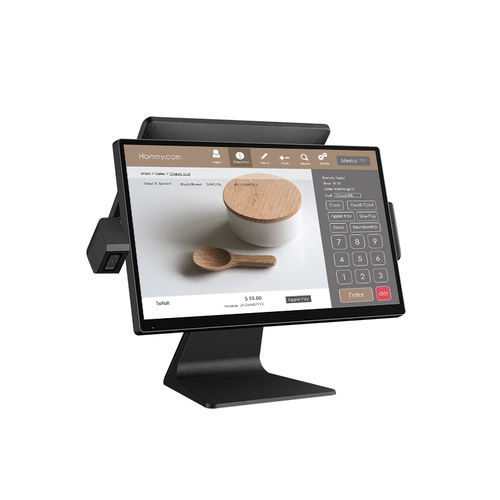

Projected capacitive touchscreen terminal PT56C

table-top1920 x 1080Intel® Celeron®

Product Overview
The PT56C POS system showcases a state-of-the-art design, combining mechanical excellence with concealed cable management to provide an elegant and space-saving solution. With its remarkable stability and high performance, the PT56C ensures an enhanced customer experience. It offers seamless integration of various peripherals like MSR, Second Display, and Customer Display, effectively accommodating most retail and hospitality project requirements.

The PT56C features a modern, slim bezel design widescreen display that seamlessly blends style with functionality. This sleek and contemporary widescreen format empowers System Integrators to create visually captivating and user-friendly menu layouts, perfectly suited for a wide range of applications in the retail, hospitality, and industrial sectors.

Main Features

• Supports CPUs from Celeron to Intel 12th Gen. Core i3/i5
• 4.8mm slimmest bezel in the present market
• Easy service cover for Memory Module & M.2 SSD
• Quick release of dual IO covers for easy access & peripherals installation
• Optional IO module for Power USB

Performance & Reliability

• Reliable Intel Processing: Intel Celeron, 12th Gen. Core i3/i5
• Front Panel IP54 (Ingress Protection) dust and waterproof protection
• Robust stand for perfect tilt adjustment
• Multiple mount options: Wall, Pole & Stand Mount Configurations

Integration & Connectivity

• Supports P-USB Powered equipment, eliminating the need for external power supply adapters for USB peripherals
• Single connecting cable provides data and power for peripherals
• Connect powered USB devices such as receipt printers, barcode scanners, and other capture devices without additional power adapters

SoftPOS Payment Support

• 10.1” 2nd display for interactive payment
• Supports Windows-compatible SoftPOS with NFC payment
• Simplifies checkout and enhances experience

Specification
Main Board
PT56 (PE24) / PT56 (PE26)
Main Board
Processor: Intel® Celeron® Processor (PE24) / Intel® Alder Lake-P Platform, Core i5, Core i3 (PE26)
Chipset: CPU Integrated
System Memory: 1 x SO-DIMM DDR4 slot, 4GB RAM as standard. Max. memory support up to 16GB (PE24) / 1 x 8GB DDR5 SO-DIMM memory (Max.support up to 32GB) (PE26)
TPM: Intel F/W
Intel AMT: N/A (PE24) / i5 CPU Only (PE26)

Display & Touch
LCD Size: 15.6″ 16:9 TFT LCD (LED backlight)
Brightness: 350nits
Resolution: 1920 x 1080 (16:9)
Touch: True Flat Projected Capacitive Technology

Storage
HDD/SSD: 1 x M.2 PCIE Gen 3

Panel I/O
LAN Port: 1 x Gigabit Ethernet by RJ-45
USB Port: 4 x USB 2.0, 3 x USB 3.1
COM Port: 2 x COM (COM 1/2: RG48 Support DC to 5/12v by BIOS Setting, Default Setting is 0v)
Cash Drawer: 1 x RJ11 (Support DC+12v or +24v (default)) port, supports 2 cash drawers
Type C: 1 x Type C
Speaker: HD Audio, 2W Speaker x 2
Power Switch: 1 x power on/off button
DC Input: 1 x Mini Din 4P (DC+19v only)

OS Support: Windows 10 (64bit), Windows 11 (64bit) (Option), Linux

Power Adapter (External Adapter): Voltage:+19VDC, Std. 65 watt (PE24) / Voltage:+19VDC, Std. 90 watt (PE26)

Compliance
Certifications: CE, FCC, LVD, RoHS
Material: Main Unit: Plastic
Color: Main Unit: Black
Dimension (W x H x D mm): 359.8 x 261.2 x 178 mm
Environmental Conditions: Operating: 0°C ~ 40°C, 10% ~ 90% RH, non-condensing; Storage: -20°C ~ 60°C, 10% ~ 90% RH, non-condensing

Optional Accessories
MSR: ISO 3-Tracks Slim MSR USB Type
ibutton: Dallas Key Reader, USB Type
RFID: 13.56Mhz USB Type
Fingerprint: DigitalPersona U.are.U 4500 Module, USB Type
Scanner: 2D scanner, USB Type
2nd Display 10.1″: 10.1” Resolution 1280 x 800 (16:10 wide screen) USB Type, Non Touch; Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa
2nd Display 15.6″: 15.6″ Resolution 1920 x 1080 (16:9 Widescreen), PCAP Touch (*Project Based)
LCM: 2×20 LCM, USB Type
Packaging Carton: L395 x 295 x H489 mm

Caractéristiques / Spécifications techniques

• Processor: Intel® Celeron® or Intel® Alder Lake-P Platform (Core i3/i5)
• Memory: DDR4/DDR5 SO-DIMM, up to 32GB
• Display: 15.6″ 16:9 TFT LCD, 1920 x 1080, 350nits, Projected Capacitive Touch
• Storage: 1 x M.2 PCIE Gen 3
• Connectivity: 1 x Gigabit Ethernet, 4 x USB 2.0, 3 x USB 3.1, 2 x COM, 1 x RJ11, 1 x Type C
• Audio: HD Audio, 2W Speaker x 2
• Power: External Adapter, +19VDC, 65W/90W
• Certifications: CE, FCC, LVD, RoHS
• Material: Plastic, Color: Black
• Dimensions: 359.8 x 261.2 x 178 mm
• Operating Temp: 0°C ~ 40°C, Storage Temp: -20°C ~ 60°C
• Optional: MSR, ibutton, RFID, Fingerprint, 2D scanner, 2nd Display (10.1”/15.6”), LCM
