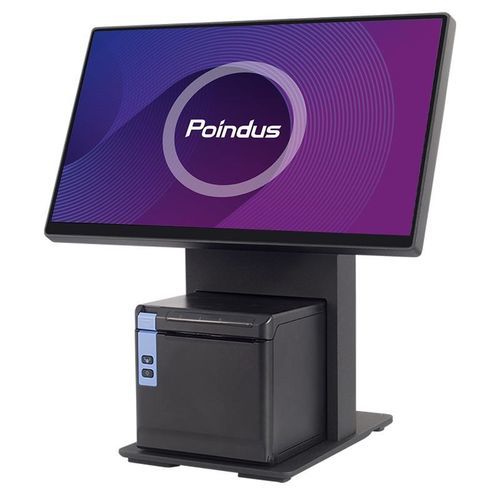

Projected capacitive touchscreen terminal PT58D

table-topfull HDIntel® Celeron®

Product Overview

• PT Series POS Systems, respond to market demand.

Key Features

• Full range of CPUs from Celeron to Intel 12th Gen. Core i3/i5
• Aluminum die-casting structure for strong & stable operation.
• Easy access/service M.2 SSD cover.
• Rubber gasket frame sealing bezel design for IP-65 resistance.
• Comprehensive dual-side mounting support of peripherals: MSR/Fingerprint/iButton/RFID/2D scanner readers.
• Support 15.6″ 16:9 or 10.1″ 2nd display, & 2×20 LCM.
• Integrated Printer Bay with Hidden Cable Management. Max Printer Size: W133 x D137 x H132 mm
• Innovative heat-dissipation fan-less operation design.
• 4.8mm Super Slim Edge Bezel.
• VESA 75/100 for Pole/Wall Mounting.

Retail Ready Performance

• Space Saving POS Solution for Modern Retail

The PT58D includes a new stand design with an integrated printer bay with hidden cable management delivering great space features. With its sleek and modern ultra-slim bezel design, the PT58D presents a stunning widescreen display that seamlessly integrates style and functionality. The Full HD widescreen format empowers System Integrators to create intricate interfaces tailored to the specific requirements of diverse applications in the retail, hospitality, and industrial sectors. Additionally, the PT58D offers effortless integration of peripherals like MSR, Second Display, and Customer Display, effectively meeting all project needs.
Deliver the Power to Perform

• Reliable Intel Processing: Intel Celeron, 12th Gen. Core i3/i5
• Front Panel IP65 (Ingress Protection) dust and waterproof protection
• Robust Stand with Integrated Printer Bay and Hidden Cable Management
• Multiple Mount Options: Wall, Pole & Stand Mount Configurations

Stability & Performance

• System Stability for Demanding Workloads

The PT58C POS system features an innovative design that combines exceptional mechanical engineering with a groundbreaking 12% improvement in heat dissipation. These advancements significantly enhance the Mean Time Between Failures (MTBF) and overall system stability, ensuring uninterrupted operations even during demanding workloads.
SoftPOS Payment Support

• 10.1” 2nd display for interactive payment.
• Supports Windows-compatible SoftPOS with NFC payment.
• Simplifies checkout and enhances experience.

Specifications
Main Board
PT58 (PE24) / PT58 (PE26)
Processor
PT58 (PE24): Intel® Celeron® Processor
PT58 (PE26): Intel® Alder Lake-P Platform, Core i5, Core i3
Chipset: CPU Integrated
System Memory
PT58 (PE24): 1 x SO-DIMM DDR4 slot, 4GB RAM as standard. Max. memory support up to 16GB.
PT58 (PE26): 1 x 8GB DDR5 SO-DIMM memory (Max.support up to 32GB)
TPM: Intel F/W
Intel AMT: N/A (i5 CPU Only for PE26)
Display & Touch
LCD Size: 15.6″ 16:9 TFT LCD
Brightness: 250nits
Resolution: 1920 x 1080, Full HD
Touch: True Flat Projected Capacitive Technology
Storage: 1 x 128GB M.2 SSD as standard
Panel I/O
LAN Port: 1 x Gigabit Ethernet by RJ-45
USB Port: 3 x USB 2.0, 3 x USB 3.1
COM Port: 2 x RJ48 (Support DC+0/5/12v by BIOS setting, default setting is 0v)
Cash Drawer: 1 x RJ11 (Support DC+12v or +24v (default)) port, supports 2 cash drawers
Type C: 1 x Type C
Speaker: HD Audio, 2W Speaker x 2
Power Switch: 1 x power on/off button
DC Input: 1 x Mini Din 4P (DC+19v only)
OS Support: Windows 10 (64bit), Windows 11 (64bit) (Option), Linux
Power Adapter (External Adapter):
PT58 (PE24): Voltage:+19VDC, Std. 65 watt
PT58 (PE26): Voltage:+19VDC, Std. 90 watt
Compliance: CE, FCC, LVD, RoHS
Material: Main Unit: Plastic
Color: Main Unit: Black
Dimension (W x H x D mm): 361.6 x 300.5 x 191.9 mm
Environmental Conditions:
Operating: 0°C ~ 40°C, 10% ~ 90% RH, non-condensing
Storage: -20°C ~ 60°C, 10% ~ 90% RH, non-condensing
Optional Accessories:
MSR: ISO 3-Tracks Slim MSR USB Type
ibutton: Dallas Key Reader, USB Type
RFID: 13.56Mhz USB Type
Fingerprint: DigitalPersona U.are.U 4500 Module, USB Type
Scanner: 2D scanner, USB Type
2nd Display 10.1″: 10.1” Resolution 1280 x 800 (16:10 wide screen) USB Type, Non Touch. Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa
2nd Display 15.6″: 15.6″ Resolution 1920 x 1080 (16:9 Widescreen), PCAP Touch (*Project Based)
LCM: 2×20 LCM, USB Type
Packaging Carton: L395 x 295 x H489 mm

Technical Characteristics / Specifications

• Processor: Intel® Celeron® or Intel® Alder Lake-P Platform (Core i3/i5)
• Memory: Up to 32GB DDR5 (PE26), up to 16GB DDR4 (PE24)
• Storage: 128GB M.2 SSD standard
• Display: 15.6″ 16:9 TFT LCD, 1920 x 1080 Full HD, 250nits, Projected Capacitive Touch
• Connectivity: 1 x Gigabit Ethernet, 3 x USB 2.0, 3 x USB 3.1, 2 x RJ48 COM, 1 x RJ11 Cash Drawer, 1 x Type C
• Audio: HD Audio, 2 x 2W Speakers
• Power: 19VDC, 65W/90W external adapter
• Dimensions: 361.6 x 300.5 x 191.9 mm
• Operating Temp: 0°C ~ 40°C
• Certifications: CE, FCC, LVD, RoHS
• Optional: MSR, iButton, RFID, Fingerprint, 2D Scanner, 2nd Display (10.1”/15.6”), LCM
