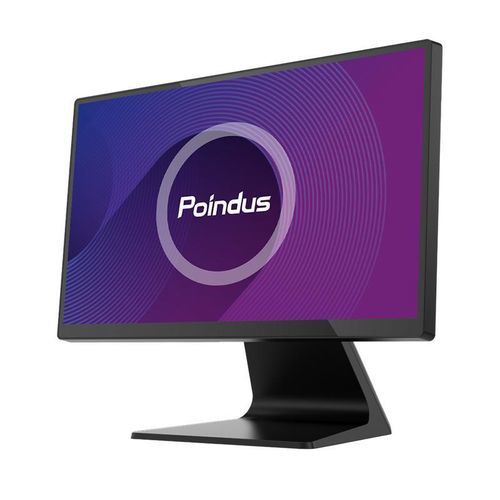

Projected capacitive touchscreen terminal PT58C

table-top1920 x 1080Intel® Celeron®

Product Overview
All In One PT Series POS Systems, respond to market demand. PT58C Redefining POS Excellence with Cutting-Edge Design.

• Full range of CPUs from Celeron to Intel 12th Gen. Core i3/i5
• Aluminum die-casting structure for strong & stable operation.
• Easy access/service M.2 SSD cover.
• Rubber gasket frame sealing bezel design for IP-65 resistance.
• Comprehensive dual-side mounting support of peripherals: MSR/Fingerprint/iButton/RFID/2D scanner readers.
• Support 15.6″ 16:9 or 10.1″ 2nd display, & 2×20 LCM.
• Innovative heat-dissipation fan-less operation design.
• 4.8mm Super Slim Edge Bezel.
• VESA 75/100 for Pole/Wall Mounting.

Retail Ready Performance
With its sleek and modern ultra-slim bezel design, the PT58C presents a stunning widescreen display that seamlessly integrates style and functionality. The Full HD widescreen format empowers System Integrators to create intricate interfaces tailored to the specific requirements of diverse applications in the retail, hospitality, and industrial sectors. Additionally, the PT58C offers effortless integration of peripherals like MSR, Second Display, and Customer Display, effectively meeting all project needs.
Deliver the Power to Perform

• Reliable Intel Processing: Intel Celeron, 12th Gen. Core i3/i5
• Front Panel IP65 (Ingress Protection) dust and waterproof protection
• Robust Stand for the perfect tilt adjustment
• Multiple Mount Options: Wall, Pole & Stand Mount Configurations

Stability & Performance
System Stability for Demanding Workloads. The PT58C POS system features an innovative design that combines exceptional mechanical engineering with a groundbreaking 12% improvement in heat dissipation. These advancements significantly enhance the Mean Time Between Failures (MTBF) and overall system stability, ensuring uninterrupted operations even during demanding workloads.
SoftPOS Payment Support

• 10.1” 2nd display for interactive payment.
• Supports Windows-compatible SoftPOS with NFC payment.
• Simplifies checkout and enhances experience.

Specification
PT58 (PE24) / PT58 (PE26)
Main Board
Processor: Intel® Celeron® Processor (PE24) / Intel® Alder Lake-P Platform Core i5, Core i3 (PE26)
Chipset: CPU Integrated
System Memory: 1 x SO-DIMM DDR4 slot, 4GB RAM as standard. Max. memory support up to 16GB (PE24) / 1 x 8GB DDR5 SO-DIMM memory (Max.support up to 32GB) (PE26)
TPM: Intel F/W
Intel AMT: N/A (PE24), i5 CPU Only (PE26)
Display & Touch
LCD Size: 15.6″ 16:9 TFT LCD
Brightness: 250nits
Resolution: 1920 x 1080, Full HD
Touch: True Flat Projected Capacitive Technology
Storage
HDD/SSD: 1 x 128GB M.2 SSD as standard
Panel I/O
LAN Port: 1 x Gigabit Ethernet by RJ-45
USB Port: 3 x USB 2.0, 3 x USB 3.1
COM Port: 2 x RJ48 (Support DC+0/5/12v by BIOS setting, default setting is 0v)
Cash Drawer: 1 x RJ11 (Support DC+12v or +24v (default)) port, supports 2 cash drawers
Type C: 1 x Type C
Speaker: HD Audio, 2W Speaker x 2
Power Switch: 1 x power on/off button
DC Input: 1 x Mini Din 4P (DC+19v only)
OS Support
Windows 10 (64bit) | Windows 11 (64bit) (Option) | Linux
Power Adapter (External Adapter)
Voltage: +19VDC, Std. 65 watt (PE24) / +19VDC, Std. 90 watt (PE26)
Compliance
Certifications: CE, FCC, LVD, RoHS
Material: Main Unit: Plastic
Color: Main Unit: Black
Dimension (W x H x D mm): 361.6 x 300.5 x 191.9 mm
Environmental Conditions
Operating: 0°C ~ 40°C, 10% ~ 90% RH, non-condensing
Storage: -20°C ~ 60°C, 10% ~ 90% RH, non-condensing
Optional Accessories
MSR: ISO 3-Tracks Slim MSR USB Type
ibutton: ibutton Dallas Key Reader, USB Type
RFID: 13.56Mhz USB Type
Fingerprint: DigitalPersona U.are.U 4500 Module, USB Type
Scanner: 2D scanner, USB Type
2nd Display 10.1″: 10.1” Resolution 1280 x 800 (16:10 wide screen) USB Type, Non Touch; Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa
2nd Display 15.6″: 15.6″ Resolution 1920 x 1080 (16:9 Widescreen), PCAP Touch (*Project Based)
LCM: 2×20 LCM, USB Type
Packaging Carton: L395 x 295 x H489 mm
e-Brochure and Datasheet available

Key Features / Technical Specifications

• Processor: Intel® Celeron® or Intel® Alder Lake-P Platform Core i3/i5
• Memory: DDR4/DDR5 SO-DIMM, up to 32GB
• Storage: 128GB M.2 SSD standard
• Display: 15.6″ Full HD, 1920 x 1080, Projected Capacitive Touch
• Front Panel: IP65 dust and waterproof
• Ports: Multiple USB, LAN, COM, RJ11 for cash drawer, Type C
• Audio: HD Audio, 2 x 2W speakers
• Mounting: VESA 75/100, Wall/Pole/Stand
• Optional: MSR, iButton, RFID, Fingerprint, 2D scanner, 2nd Display (10.1”/15.6”), LCM
• OS: Windows 10/11 (64bit), Linux
• Certifications: CE, FCC, LVD, RoHS
• Dimensions: 361.6 x 300.5 x 191.9 mm
