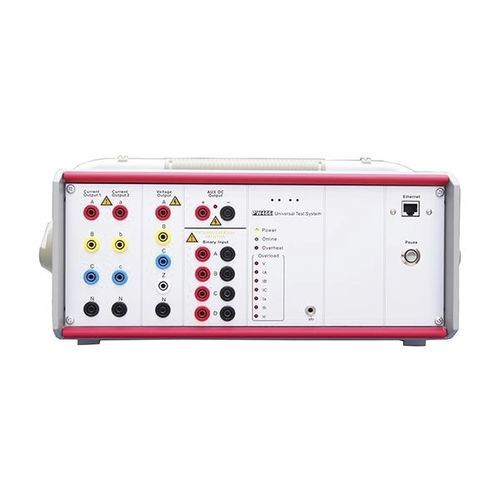

Protection relay test equipment PW466i

electricvoltagecurrent

PW466i (6×20A, 6×150V) 6-phase relay tester is a powerful secondary injection protective relay testing kit with 6-currents and 6-voltages sources. PW466i (6×20A, 6×150V) 6-phase relay tester is a powerful secondary injection protective relay testing kit with 6-currents and 6-voltages sources. This advanced relay tester is capable of automatically testing differential relay and synchronizing relay. Feature: ● 6*20A, 6*150V ● Aux DC (0-300V) ● 8 binary inputs, 4 binary outputs ● Adjustable threshold (0-400V) for binary inputs ● In-built analog monitoring and recording function ● Can support the test of IEC61850 complied relay ● More than 500 relay templates offered freely for different relay templates to do automatic testings ● Support importing setting value of relays via XRIO/RIO PONOVO's Powertest default set files automatically into relay templates. PW466i the ideal test device for all power utilities, power plants, relay manufactures, panel manufactures, research institutes, Universities, testing companies, etc.
