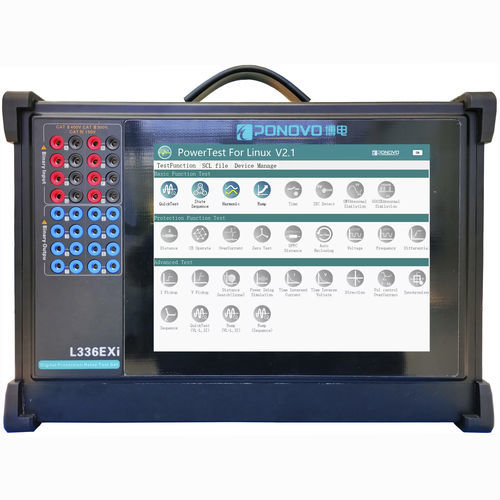

Laboratory test set L336EXi

for electrical networksfor electrical machines and installationsfor power transformers

L336EXi Super-Light Digital Protection Relay Test Set is new generation of L336i series portable relay testing equipment launched by PONOVO. The weight of the whole machine is only 9kg. It is equipped with 6 current and 6 voltage output, and fiber digital output capability, which could be used for testing any types of relays from electromagnetic relays, numerical relays, microcomputer relays, and digital relays based on IEC61850. L336EXi adopts Linux operating system on local touch-screen and also support external PC control by its windows system. Features • - Super light design, only 9kg, 1/3 of the weight of traditional testing system. • - Equipped with 6 current outputs and 6 voltage outputs, high power output for different kinds of relay testing and stable signal output with high accuracy. • - Equipped with 8 fiber optic ports for different digital relay testing. Combined full IEC61850 function, support digital quantity include SV, FT3 can be sent and received and GOOSE can be published and subscription. • - Embedded with 10inch touchscreen for local operation or external PC control. • - Internal digital recorder for monitoring and recording test process. • - Built-In WIFI for wireless connection to PC. • - Built-in GPS, support IRIG-B and IEEE1588(PTP) Synchronization. Applications L336EXi supports voltage and current output, binary input and output, SMV sending and receiving and GOOSE publish and subscription, can test secondary devices such as traditional or digital substation protection relay and measurement and control devices.
