Automatic test system POM2-3243

processmodularthree-phase relay

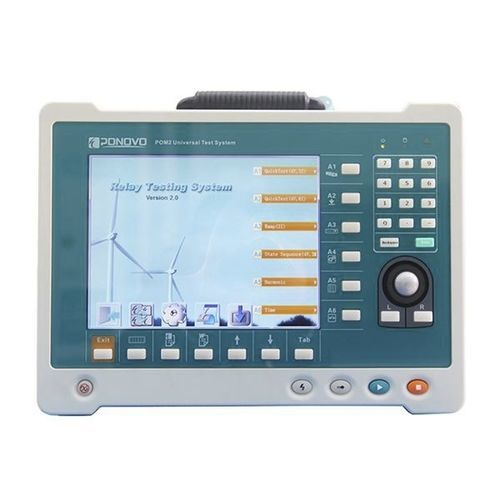

POM2 series protection relay test kit is the best modular designed relay tester with local control system. There are 2 models, the POM2-6143 and POM2-3243, the POM2-3243 with 3×20A and 4×300V. POM2 series protection relay test kit is the best modular designed relay tester with local control system. There are 2 models, the POM2-6143 and POM2-3243, the POM2-3243 with 3×20A and 4×300V. POM2 series relay test set could be used for testing all kinds of relays. Its local control system is with 10.4inch LCD screen based on Windows system. The kit support both local control and external PC control. Feature: ● POM2-3243：3*20A，4*300V ● Can support the test of IEC61850 complied relay ● Adjustable threshold (0-400V) for binary inputs ● 8 binary inputs, 8 binary outputs ● Aux DC (0-300V), DC measuring inputs ● More than 500 relay templates offered freely for different relay templates to do automatic testings ● Support importing setting value of relays via CSV/XRIO/RIO PONOVO's Powertest default set files automatically into relay templates
