Electric energy meter test equipment PACB108

electricautomaticindustrial

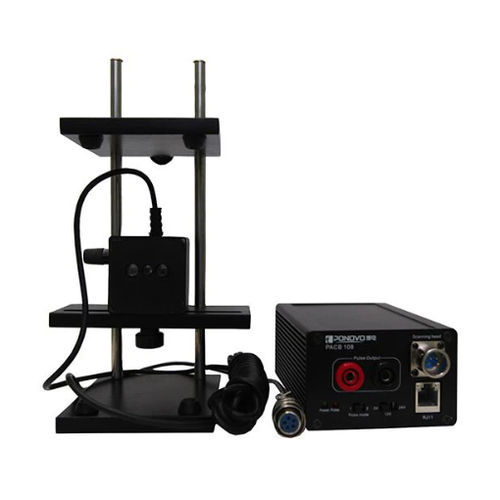

PACB08 is the accessory device to perform the energy meter test, which can work together with PONOVO’s relay test sets to test energy meter by using Energy Meter Module in Powertest software. It consists of two parts: optical scanning head and pulse convertor box. The functions of optical scanning head: 1. Convert optical signal into pulse signal on meter; 2. Convert the marker line of turntable into pulse signal. The functions of pulse convertor box: 1. Provide power to optical scanning head; 2. Change the pulse signal into different amplitude pulse signal to provide for other test equipment such as PW460 and PW336i, etc. 3. Convert pulse output method: single 5m pulse and synchronization optical scanning head pulse. 4. Extend an output port, type: RJ11. It is used for other optical scanning head input.
